LEK04-6NC
flolite
94054090
| Input Voltage: | |
|---|---|
| Battery: | |
| Emergency duration: | |
| Charging time: | |
| Power Consumption: | |
| Quantity: | |
Product Name: | LED Emergency Light |
Item No.: | LEK04-6NC |
Relevant Standard
EN 60598-1 | EN 61000-3-2 | IEC 60598-1 | IEC61000-3-2 |
EN 60598-2-22 | EN 61000-3-3 | IEC 60598-2-22 | IEC 61000-3-3 |
EN 61347-1 | EN 62471 | IEC 61347-1 | IEC 62471 |
EN 61347-2-13 | EN 62493 | IEC 61347-2-13 | IEC 62493 |
EN 61347-2-7 | EN 55015 | IEC 61347-2-7 | IEC 55015 |
EN 62778 | EN62031 | IEC 62778 | IEC62031 |
Product Parameter
Model No.: | LEK04-6NC | Battery: | Ni-Cd, 4.8V 900mAh |
LED Chips: | CREE XT-E | Luminous Flux: | 90lm |
Power Consumption: | 2*3W | Input Voltage: | AC220-240V~50/60Hz |
Charge time: | 24Hours | Emergency duration: | 3 Hours |
ta: | 0~35ºC | Max. Case Temp.: | 70ºC |
Protection Class: | II | IP Rating: | IP20 |
Operation: | Non-maintained |

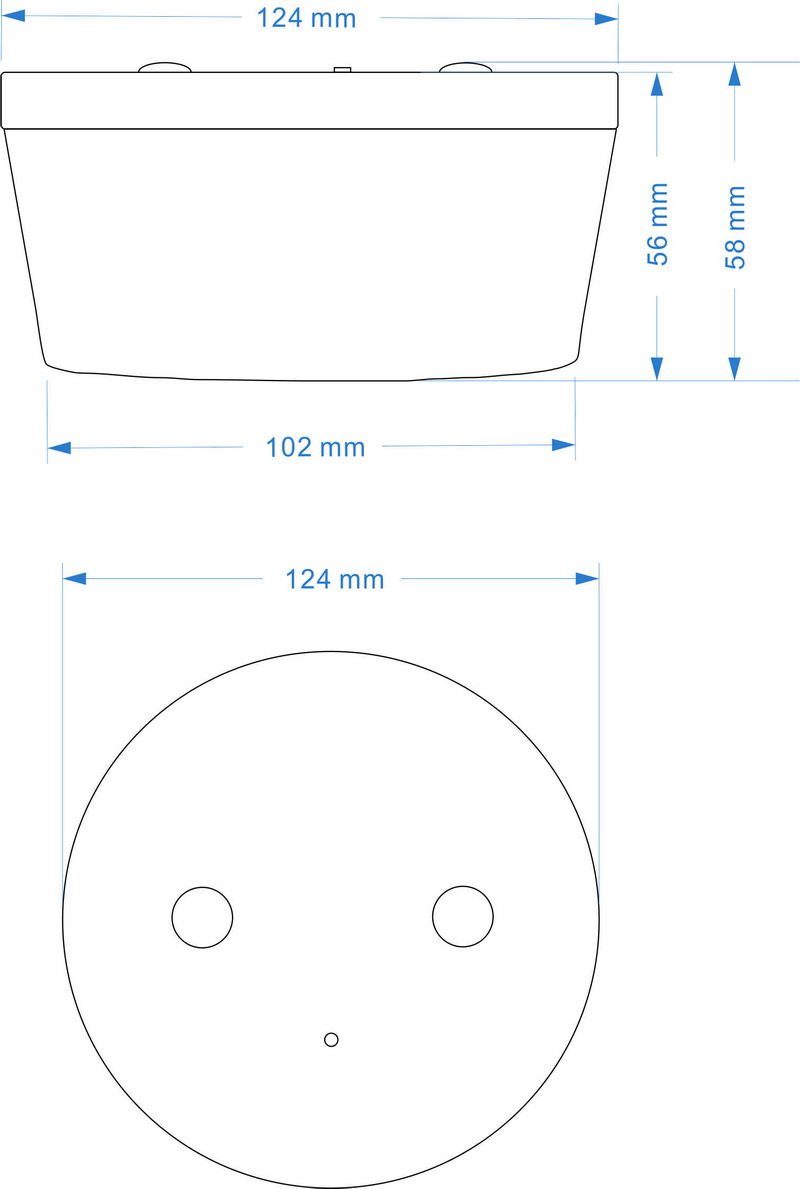

Dimension
Installation
* Surface
* Recessed

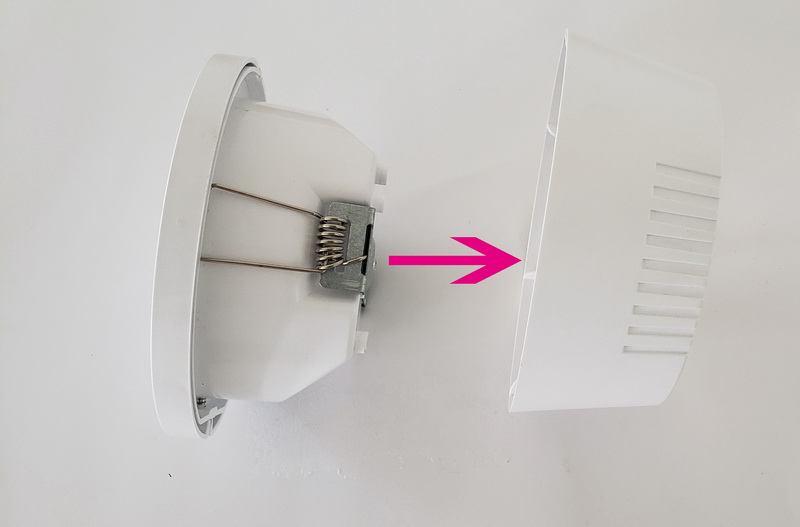

Surface to Recessed: Remove the frame
Special Notes
∷ This product should be installed by a registered electrician in accordance with local standards and electrical regulations;
∷ Take care to ensure the mains supply is isolated before installation;
∷ The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced;
∷ The whole luminaire should be replaced when they no longer meet their rated duration of operation after the corresponding recharge period.
