CB/CE/UKCA certified IP65 Li-ion Battery Backup Rechargeable LED Emergency Bulkhead Light (LEL03-7L)

It is for escape routing or for standby illumination(emergency lighting).
The luminaire can be a lifeline for people trying to find their way out of a building if main lighting fails. This is particularly
important in the event of a fire, earthquake, flood, etc.
  • LEL03-7L
  • flolite
  • 94054090
Input Voltage:
Battery:
Emergency duration:
Charging time:
Power Consumption:
Availability:
Quantity:

Product Features

◆ Polycarbonate housing;

◆ Exit pictogram can be designed as per clients’ request;

◆ Available in both 220VAC or 110VAC version;

◆ Green LED indicator;

◆ Installation way: Wall mounted;

◆ Maintained mode, 7W for AC, 3W for Emergency;

◆ IP65


Product Specifications

主图1主图1 Name SENTINEL
Model LEL03-7L
Housing ABS
Diffuser PS
Input Voltage 220-240VAC 50/60Hz
Power AC 7W
Emergency 3W
Lumen AC 420lm
Emergency 220lm
Mode Maintained
Viewing distance 32m
Led Q'ty 14led SMD2835/1w
Charging time 24Hrs
Duration 3Hrs
Battery Li-ion 3.7V 1800mAh
Working Temp. 0~+40
Certificate CB, CE-LVD, CE-EMC, UKCA
Warranty 3 Years

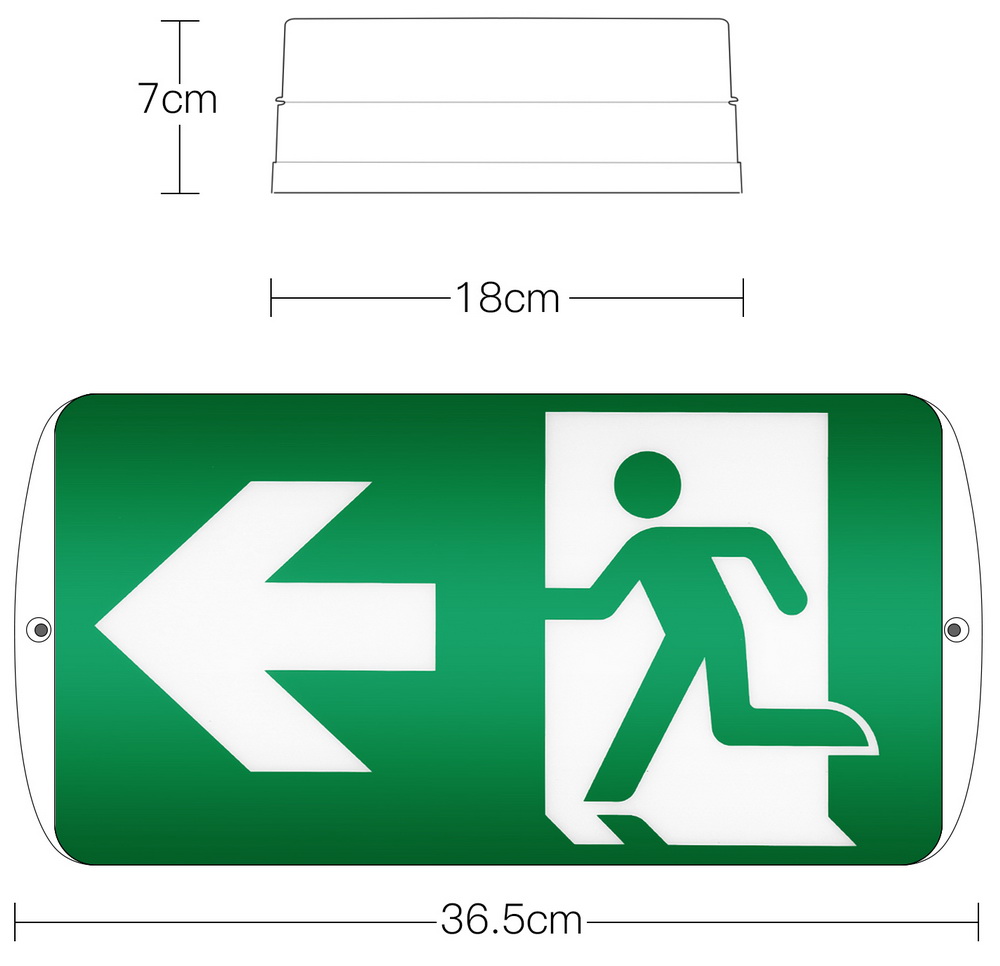

Dimension

2尺寸图


Packaging

QTY: 10PCS/CTN

MEAS: 39x37.5x38CM



Relevant Standard

Manufactured to comply with EN60598-2-22, EN60598-1, CE/CB/UKCA Approved

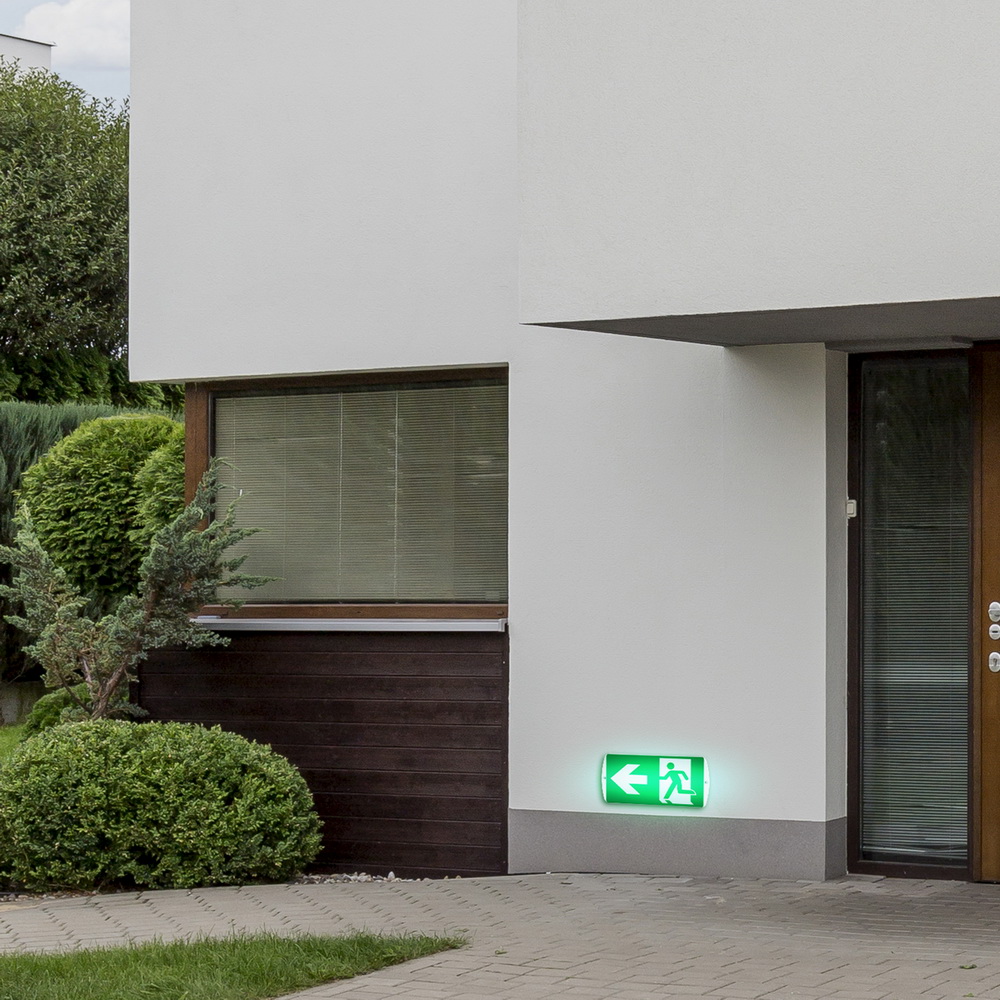

Application

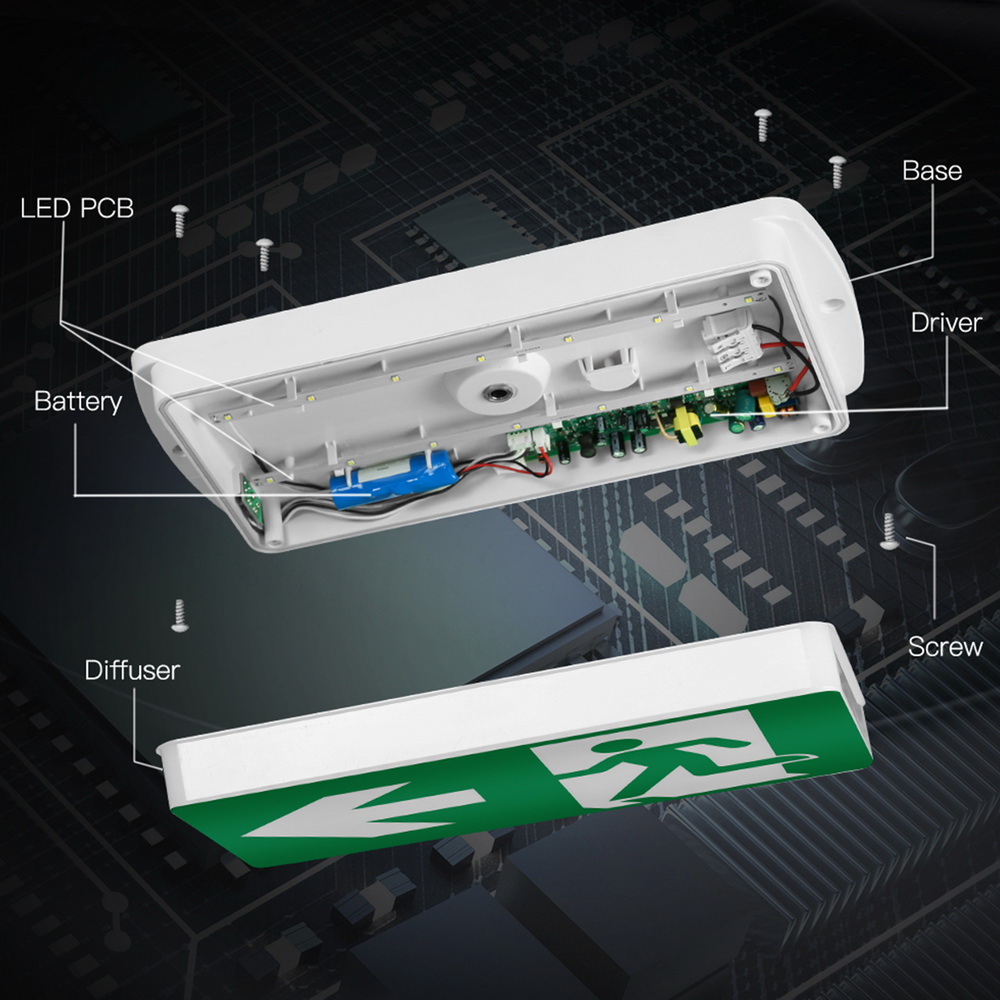

爆炸图示意图

场景图

Its success in the field of lighting for 30 years and its impressive portfolio of lighting projects make LINDAL, your ideal partner.
