FC-4220R
flolite
94054090
| Power: | |
|---|---|
| Input Voltage: | |
| CCT: | |
| CRI: | |
| Warranty: | |
| Quantity: | |
Product Specification |
Product Name | LED Ceiling light |
Model No | FC-4220R |
1. Product Features
▇ High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.
▇ Wide input voltage(200-240V); Flicker free.
▇ Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.
▇ No UV & IR. It won’t distribute ray radiation
▇ Eco-friendly, No Hg & Xe, or other harmful element; Recyclable, also it won’t generate EMI.
▇ High-performance external constant current driver, flat and smooth frame, very easy to clean

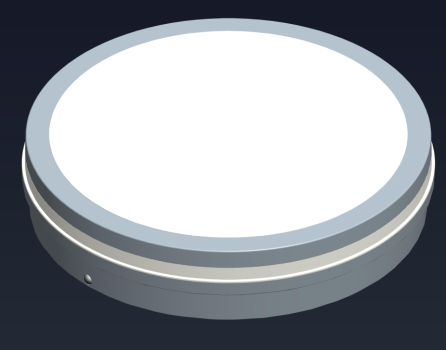

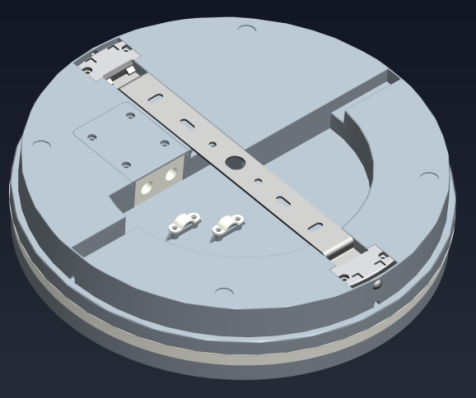

2. Product Pictures
3. Applications
Shopping Mall
Supermarket
Hotel
Corridors
Offices
Kitchen, Bathroom, living room
Bar
Subway
Airport
Exhibition Hall
4. Technical Parameters
Lighting parameters
Model: | FC-4220R |
Power: | 18W |
Size: | ø220x55mm |
Liminous Flux(lm) | 1550lm |
LED Chip: | Epistar SMD2835 |
Material: | PP |
Housing color option: | White |
Black | |
Function option: | Standard, single color |
3CCT by DIP switch | |
Microwave sensoring | |
CCT: | 3000K/4000K/6500K |
CRI: | >80 |
PF: | >0.5 |
Input Voltage: | 220-240v 50/60Hz |
Input Current: | 0.16A |
IP Rating: | IP54 |
Lifespan: | >50,000Hrs |
Warranty: | 3 years |
Energy Efficiency: | A+ |
Classification: | Class II |
Certificate: | CE CB RoHs |
Operating Temperature: | -20℃~+45℃ |
1. Light optic with a little deviation for different color temperature LED ,deviation value≤5%Note:
2. There parameters will exist tolerance of error according to related rules.

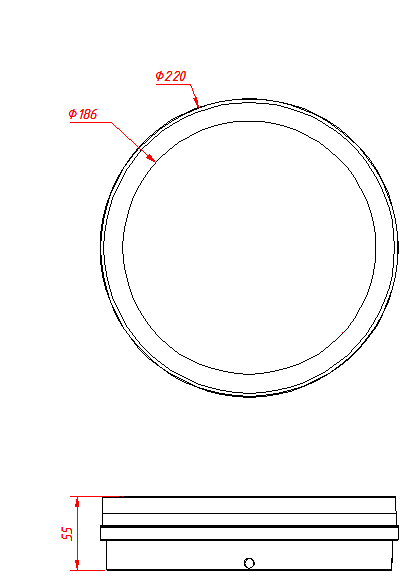

5. Dimension(mm)
6. Installation
◢ Please ask professional electrician when installing.
◢ And the ways of connecting of three-core cable is that Brown is firing line, Blue is netural line, Yellow is earth line.
7. Attention
◆ Input voltage AC200-240V, off when installation to prevent electric shock
◆ Product IP54 waterproof level, outdoor applicable.
10. Warranty
3 years warranty for the products
The warranty on the base of right storing way, right installing way, right using way, right maintaining way. Any broken out of our rule, it will be out of our warranty. During the warranty time, we can choose repairing, replacing parts or replacing the whole products according to the detail information. And we'll charge the customers some material fee and labor cost if the product is out of our warranty time.
▲ Please read the instruction carefully before you use the product. We keep the right of final explanation for instruction and product. The product will keep updating continues. And sorry for the no notice for the updating.
