FC-4220S Series LED Ceiling Light

  • FC-4220S
  • flolite
  • 94054090
Power:
Input Voltage:
CCT:
CRI:
Warranty:
Availability:
Quantity:



Product Specification


Product Name

LED Ceiling light

Model No

FC-4220S


1.  Product Features

▇ High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.

▇ Wide input voltage(200-240V); Flicker free.

▇ Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.

▇ No UV & IR. It won’t distribute ray radiation

▇ Eco-friendly, No Hg & Xe, or other harmful element; Recyclable, also it won’t generate EMI.

▇ High-performance external constant current driver, flat and smooth frame, very easy to clean

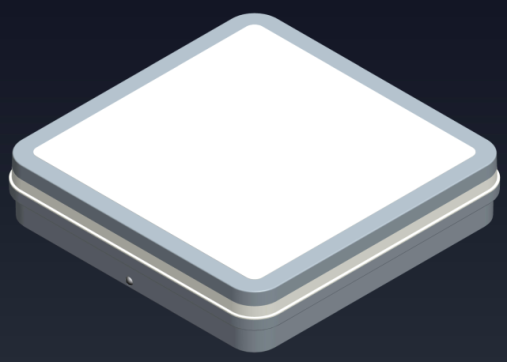

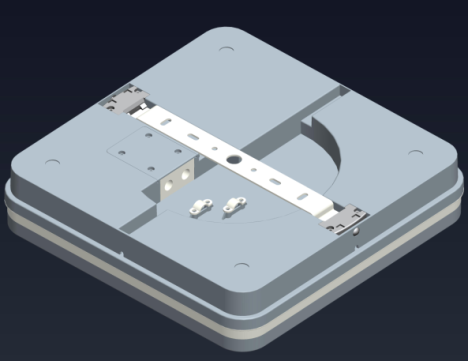

2.  Product Pictures




3.  Applications

  • Shopping Mall

  • Supermarket

  • Hotel

  • Corridors

  • Offices

  • Kitchen, Bathroom, living room

  • Bar

  • Subway

  • Airport

  • Exhibition Hall


4. Technical Parameters

 Lighting parameters

Model:

FC-4220S

Power:

18W

Size:

220x220x55mm

Liminous   Flux(lm)

1550lm

LED   Chip:

Epistar   SMD2835

Material:

PP

Housing   color option:

White

Black

Function   option:

Standard,   single color

3CCT   by DIP switch

Microwave   sensoring

CCT:

3000K/4000K/6500K

CRI:

>80

PF:

>0.5

Input   Voltage:

220-240v   50/60Hz

Input   Current:

0.16A

IP   Rating:

IP54

Lifespan:

>50,000Hrs

Warranty:

3   years

Energy Efficiency:

A+

Classification:

Class II

Certificate:

CE   CB RoHs

Operating   Temperature:

-20~+45

1. Light optic with a little deviation for different color temperature LED ,deviation value≤5%Note:

2. There parameters will exist tolerance of error according to related rules.


5.  Dimension(mm)

方尺寸

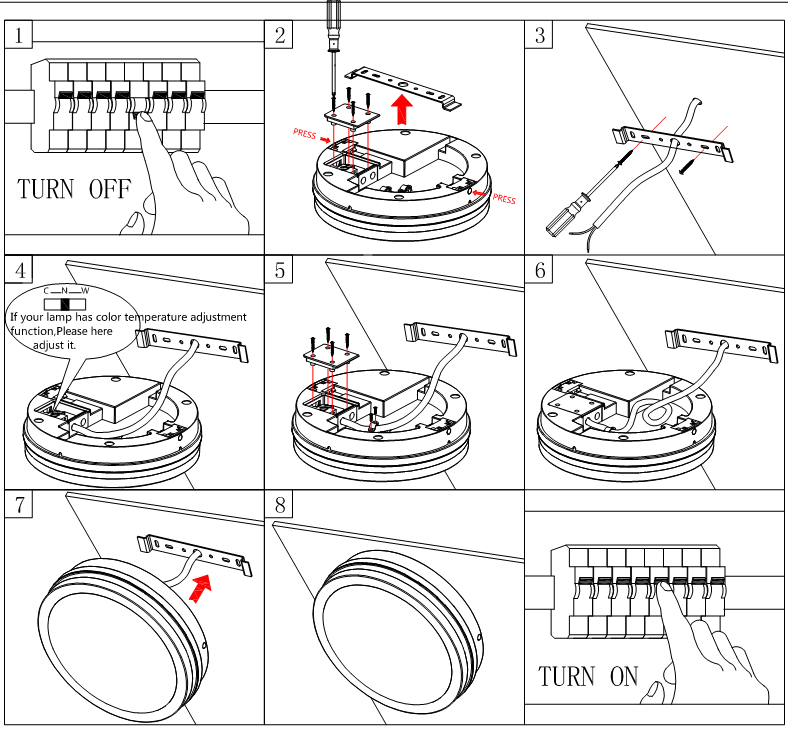

6. Installation


◢ Please ask professional electrician when installing.

◢ And the ways of connecting of three-core cable is that Brown is firing line, Blue is netural line, Yellow is earth line.


7. Attention


◆ Input voltage AC200-240V, off when installation to prevent electric shock

◆ Product IP54 waterproof level, outdoor applicable.


10. Warranty


3 years warranty for the products


The warranty on the base of right storing way, right installing way, right using way, right maintaining way. Any broken out of our rule, it will be out of our warranty. During the warranty time, we can choose repairing, replacing parts or replacing the whole products according to the detail information. And we'll charge the customers some material fee and labor cost if the product is out of our warranty time.

▲ Please read the instruction carefully before you use the product. We keep the right of final explanation for instruction and product. The product will keep updating continues. And sorry for the no notice for the updating.
