Power: | |
---|---|
Input Voltage: | |
Color temperature: | |
Certificate: | |
Availability: | |
Quantity: | |
Product Features:
* Polycarbonate housing & cover + Aluminum LED PCB;
* Body color option: Grey, Black, White;
* Color temperature: Single color temperature 3000K, 4000K, 6000K, or 3CCT switchable;
* Warranty periods: 2 years;
* 650℃ Glow-wire Test
* Class II
* DOB version
* CB/CE/UKCA Certificate;
* IP rating: IP65
Product Specifications:
Model | Power | Input Voltage | Product Size | Lumen | Ra | PF | Beam Angle |
TW-302-24 | 24W | AC220-240V | 320*138*139mm | >1920 | >80 | >0.95 | 120° |
Model | Power | Packaging | |||||
Q'ty per CTN | L | W | H | G.W. | N.W. | ||
TW-302-24 | 24W | 10 | 72.5 | 31.5 | 34.5 | 8.0 | 6.4 |

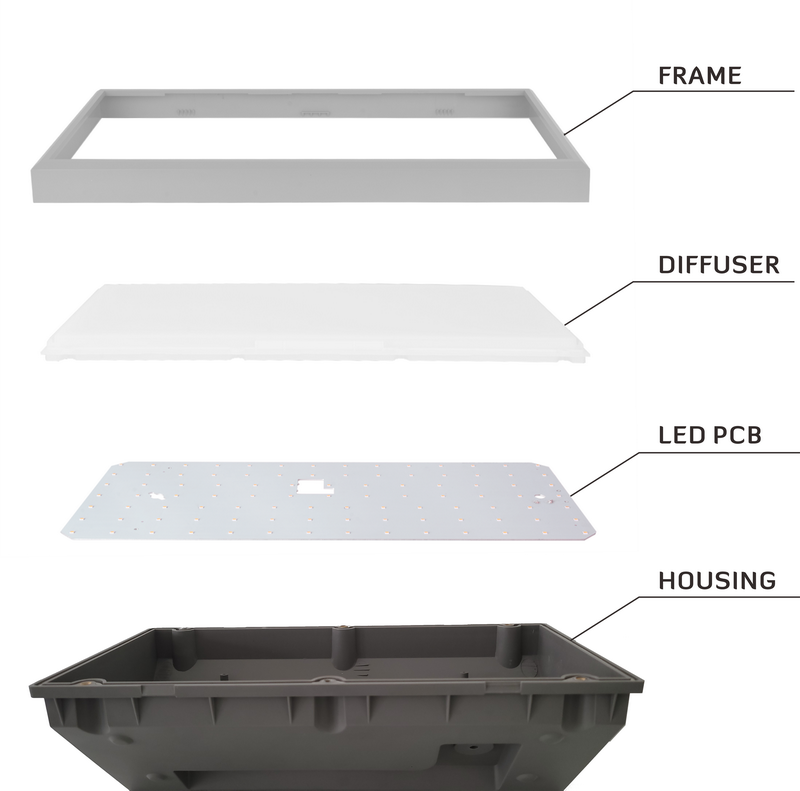

Exploded Views:

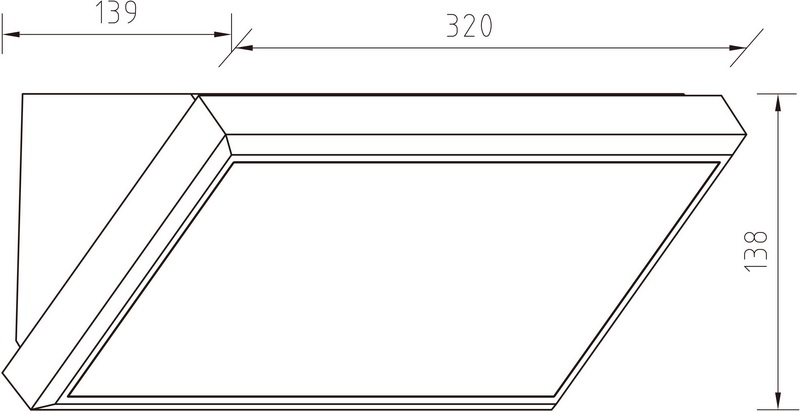

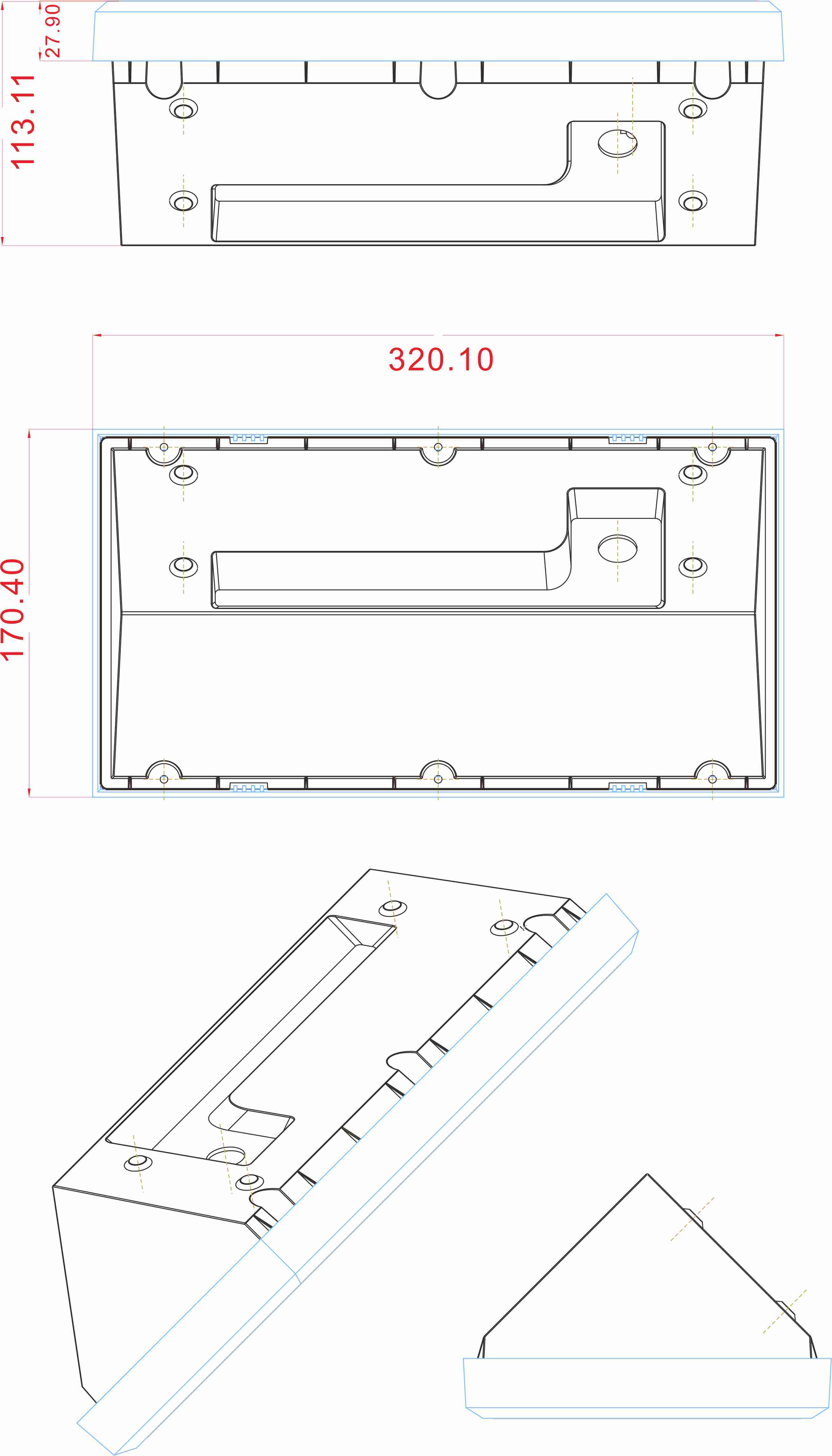

Dimensions:
Applications:
Outdoor Wall Light, Stair Light, Path Light, etc.
