| Power: | |
|---|---|
| Input Voltage: | |
| LED type: | |
| LED Q'ty: | |
| Product size: | |
| CRI: | |
| Luminious Flux: | |
| Quantity: | |
Product Features:
◆ Die-cast aluminium Housing
◇ Powder coated with pretreatment for outdoor use
◆ Glass Diffuser
◇ Silicon rubber gasket
◆ Class I
◇ Finishing Color: White, Silver grey, Dark Grey, Black
◆ Color temperature: 3000K, 4000K, 6000K
Product Specifications:
| Model | Power | LED type | LED Q'ty | Input Voltage | Product Size | Lumen | Ra | LED Driver | Ra | IP Rating | |
| PCB | Luminaire | ||||||||||
| WL-201 | 10W | SMD2835 | 48 | AC220-240V | 300*260*240mm | 600~700 | >250 | >80 | Tridonic | >0.95 | IP54 |
| Model | Power | Packaging | |||||
| Q'ty per CTN | L | W | H | G.W. | N.W. | ||
| WL-201 | 10W | 12 | 35 | 23 | 20 | 9.5 | 8.5 |

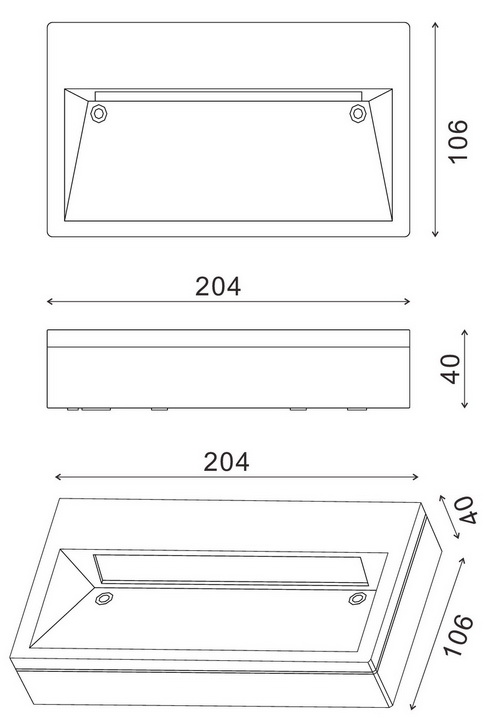

Dimensions:

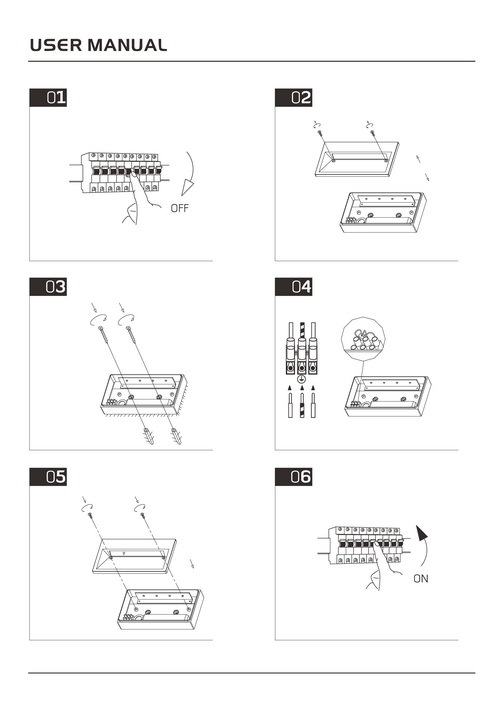

Installation:
Applications:
Outdoor Wall Light, Step Light
Product Features:
◆ Die-cast aluminium Housing
◇ Powder coated with pretreatment for outdoor use
◆ Glass Diffuser
◇ Silicon rubber gasket
◆ Class I
◇ Finishing Color: White, Silver grey, Dark Grey, Black
◆ Color temperature: 3000K, 4000K, 6000K
Product Specifications:
| Model | Power | LED type | LED Q'ty | Input Voltage | Product Size | Lumen | Ra | LED Driver | Ra | IP Rating | |
| PCB | Luminaire | ||||||||||
| WL-201 | 10W | SMD2835 | 48 | AC220-240V | 300*260*240mm | 600~700 | >250 | >80 | Tridonic | >0.95 | IP54 |
| Model | Power | Packaging | |||||
| Q'ty per CTN | L | W | H | G.W. | N.W. | ||
| WL-201 | 10W | 12 | 35 | 23 | 20 | 9.5 | 8.5 |
Dimensions:
Installation:
Applications:
Outdoor Wall Light, Step Light
