IP65 LED Panel Light

  • FT-PL66-WP40

  • flolite

  • 9405409000

Power:
IP Rating:
Protection Class:
Warranty:
Availability:
Quantity:

※ Product Features

▊ Ultra-thin and lightweight design, with perfect uniformity of light without glare;

▊ Minimalistic & aesthetically appealing approach with the low energy, low maintenance;

▊ Special design for waterproof

-- silicon strip on face and back, double fixation plate, double waterproof;

-- waterproof connector to driver on back plate;

-- breather on back, prevent moisture when expansion and contraction in different temperature, also speed up heat dissipation, long life span.


※ Technical Parameters

● Power Factor: PF>0.9

● Input Voltage: AC220-240V 50/60Hz

● Flicker Free

● Lumen Efficiency: 100LM/W up to 120LM/W

● Energy Efficiency Class: A+

● Color Rendering Index: Ra>80

● Beam Angle: 1200

● Color Consistency: SDCM 3

● Lifespan: >50,000Hrs

● Switch Circles: >30,000times

● IP Rating: IP65

● Protection Class: Class II

● Operating Temperature: -20~+450C


※ Prodcut Specifications

Item No.

Power

CCT

Dimension

Materials

Warranty

FT-PL66-WP40

40W

3000K / 4000K / 6500K



595*595mm

Alum. Frame + PMMA LGP



5 Years


FT-PL62-WP40

40W

620*620mm

FT-PL123-WP40

40W

1195*295mm

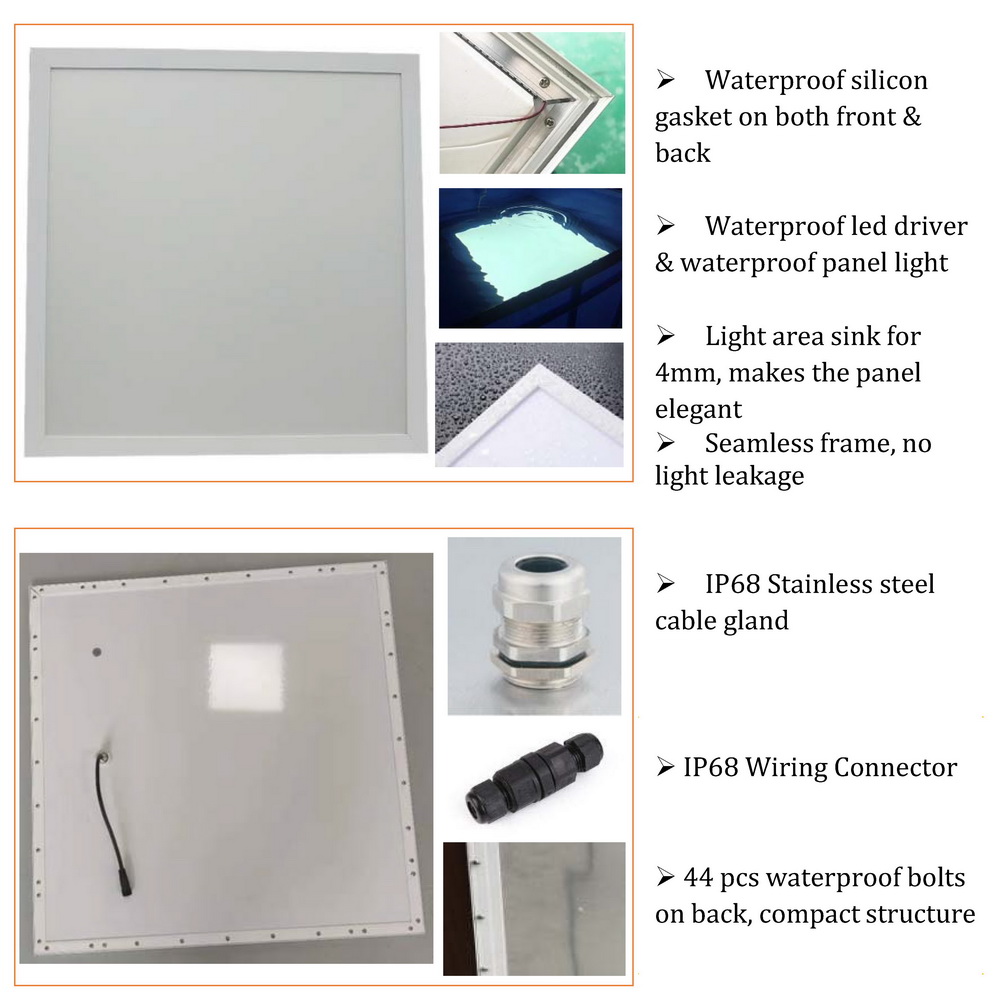

※ Product Show图片2

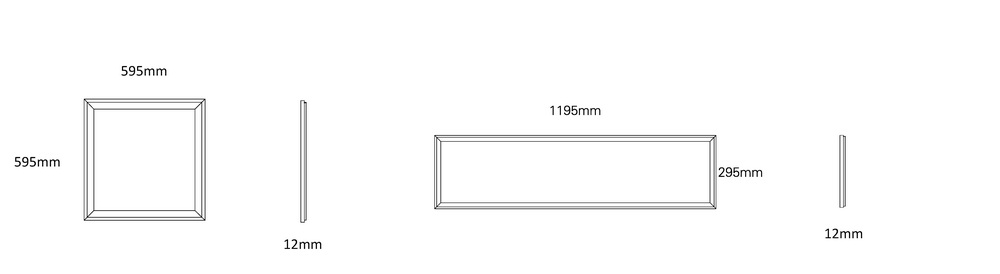

※ Dimension尺寸

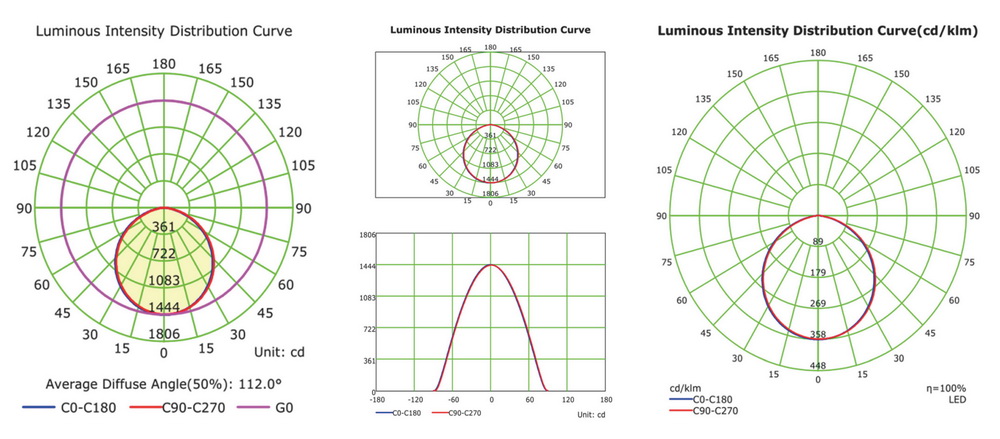

※ Photometrics

Photometrics


※ Application

◥  Restaurant

◥  Kitchen room

◥  Food Factory

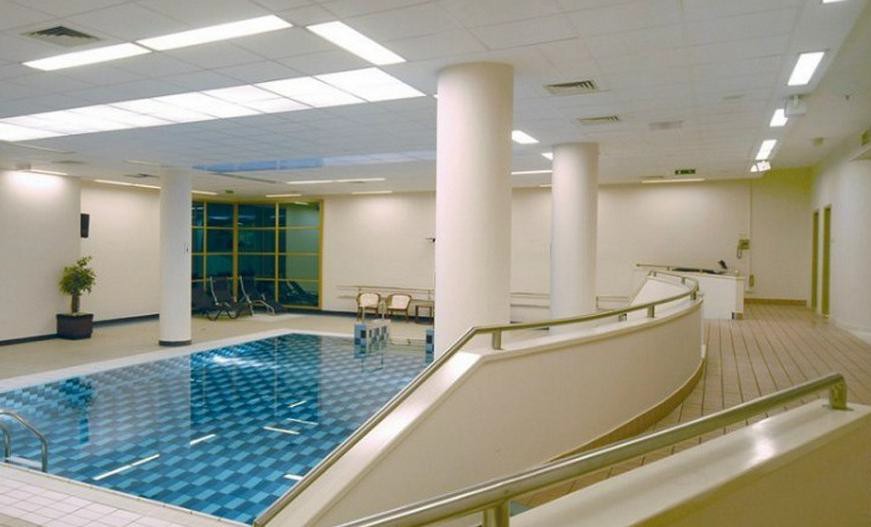

◥  Swimming pool

◥  Marketplace

◥  Farm

◥  Bathroom

◥  Clean room

◥  Hospital
