FT-BLP66-W40
flolite
94054090
| Input Voltage: | |
|---|---|
| CCT: | |
| CRI: | |
| Certificate: | |
| Warranty: | |
| Quantity: | |
Product Specification |
Product Name | Backlight LED Panel light |
Model No | FT-BLP66-W40 |
1. Product Features
▇ High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.
▇ Wide input voltage(200-240V); Flicker free.
▇ Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.
▇ No UV & IR. It won’t distribute ray radiation
▇ Eco-friendly, No Hg & Xe, or other harmful element; Recyclable, also it won’t generate EMI.
▇ High-performance external constant current driver, flat and smooth frame, very easy to clean

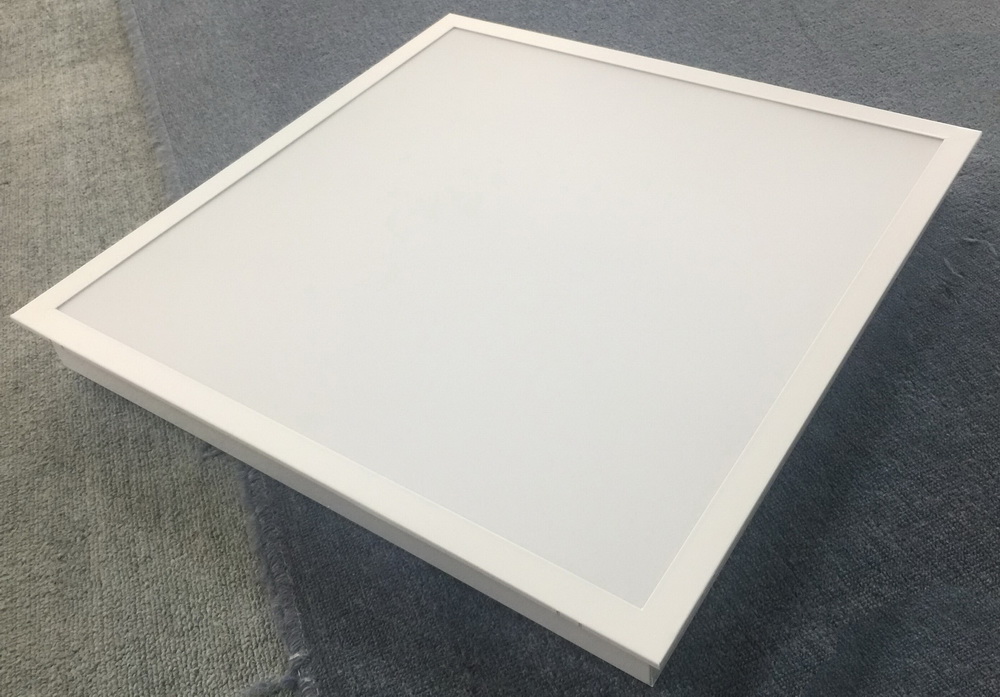

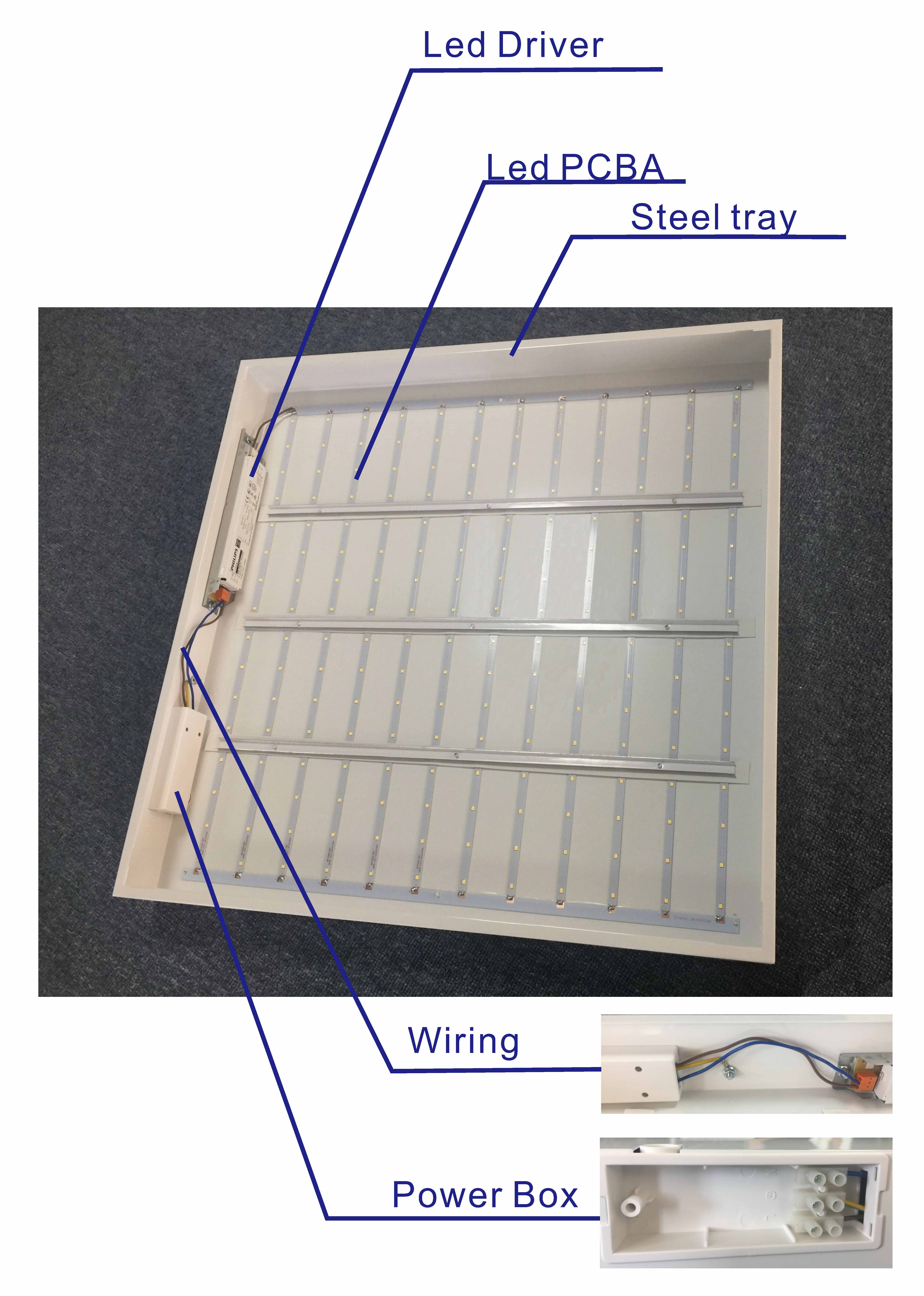

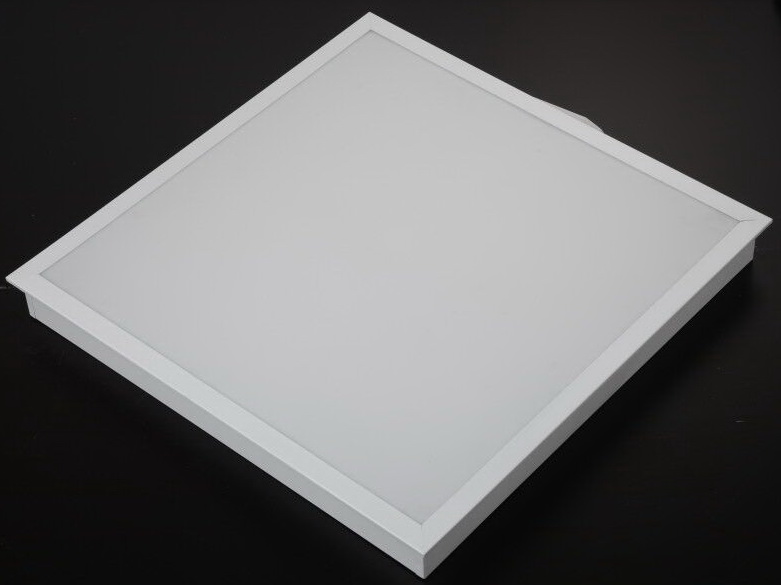

2. Product Pictures
3. Applications
● Direct replacement for luminaires with 4 x 18 W or 4 x 14 W fluorescent lamps
● Corridors
● Offices
● Conference rooms
● Reception areas
● Foyers
● Elevators
● Suitable for recessed ceiling systems with grid size of 595x595 or 600x600 mm
4. Technical Parameters
Power parameters
Power | 40W |
Input Voltage/Frequency | AC200-240V 50/60Hz |
Input Current(Type) | 220mA |
Output Voltage | DC40-115V |
Output Current | 350mA |
Power Factor | PF＞0.9 |
Lighting parameters
LED Consumption | 40W |
Lumen | >4000LM |
LED Type | SMD 2835 |
Color Temperature | 3000/4000/6000K |
Color Rendering Index | Ra≥80 |
Operating Temperature | -20～+40 ℃ |
IP Grade | IP40 |
Life-span | >50,000Hrs |
LED Chips | San’an / Epistar |
Energy efficiency | A+ |
Beam Angle | 120° |
Frame Materials | PP+Aluminum |
Appliance Class | Class I |
Certification | TUV CE CB RoHs |
Note:
1. Light optic with a little deviation for different color temperature LED ,deviation value≤5%
2. There parameters will exist tolerance of error according to related rules.

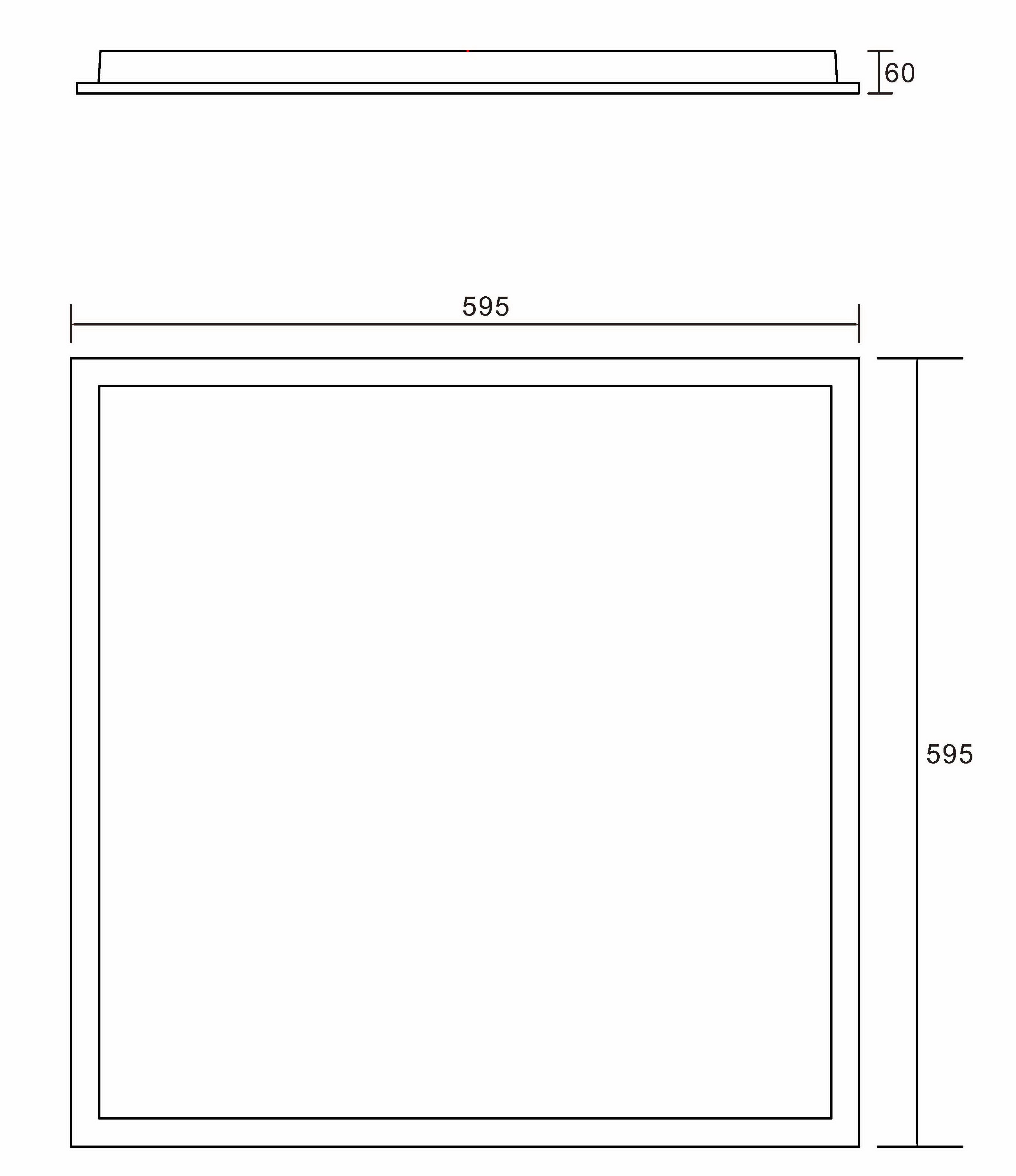

5. Dimension(mm)
6. Packing /weight
Item No. | Net Weight | Package Size | QTY/Carton | Carton Size | Cross Weight |
BLP66-W40 | 3.00kg | / | 2 | 610*140*600mm | 6.46kg |

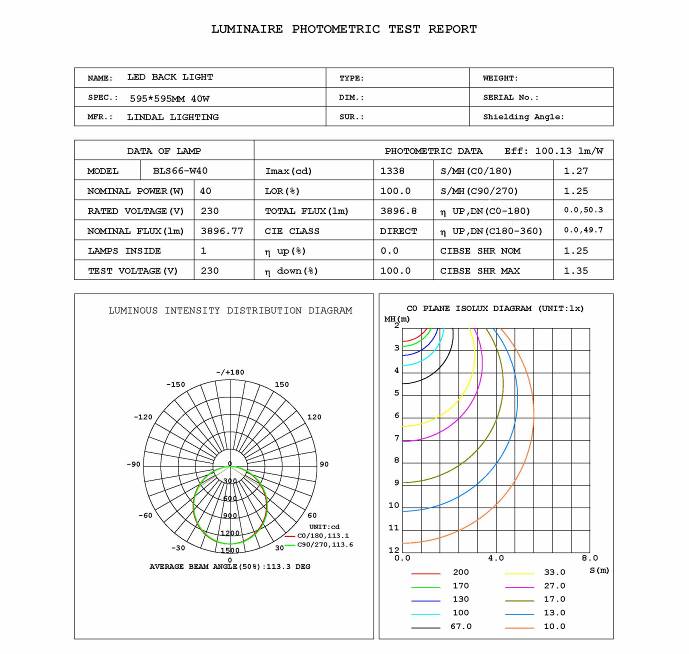

7. Integrating Sphere Testing

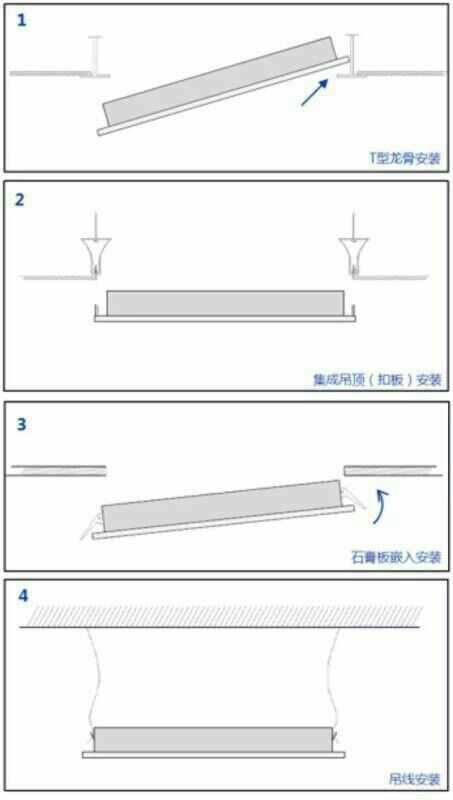

◢ Please ask professional electrician when installing.
◢ And the ways of connecting of three-core cable is that Brown is firing line, Blue is netural line, Yellow is earth line.
9. Attention
◆ Input voltage AC200-240V, off when installation to prevent electric shock
◆ Product IP40 waterproof level，Indoor use only and don’t used in too high temperature place.
◆ When the temperature is too high, Over-temperature control circuitry activates, output will be cut off, and the lamp will light off for a few minutes, After lowering temperature will be back to normal.
10. Warranty
3 years warranty for the products
The warranty on the base of right storing way, right installing way, right using way, right maintaining way. Any broken out of our rule, it will be out of our warranty. During the warranty time, we can choose repairing, replacing parts or replacing the whole products according to the detail information. And we'll charge the customers some material fee and labor cost if the product is out of our warranty time.
▲ Please read the instruction carefully before you use the product. We keep the right of final explanation for instruction and product. The product will keep updating continues. And sorry for the no notice for the updating.
