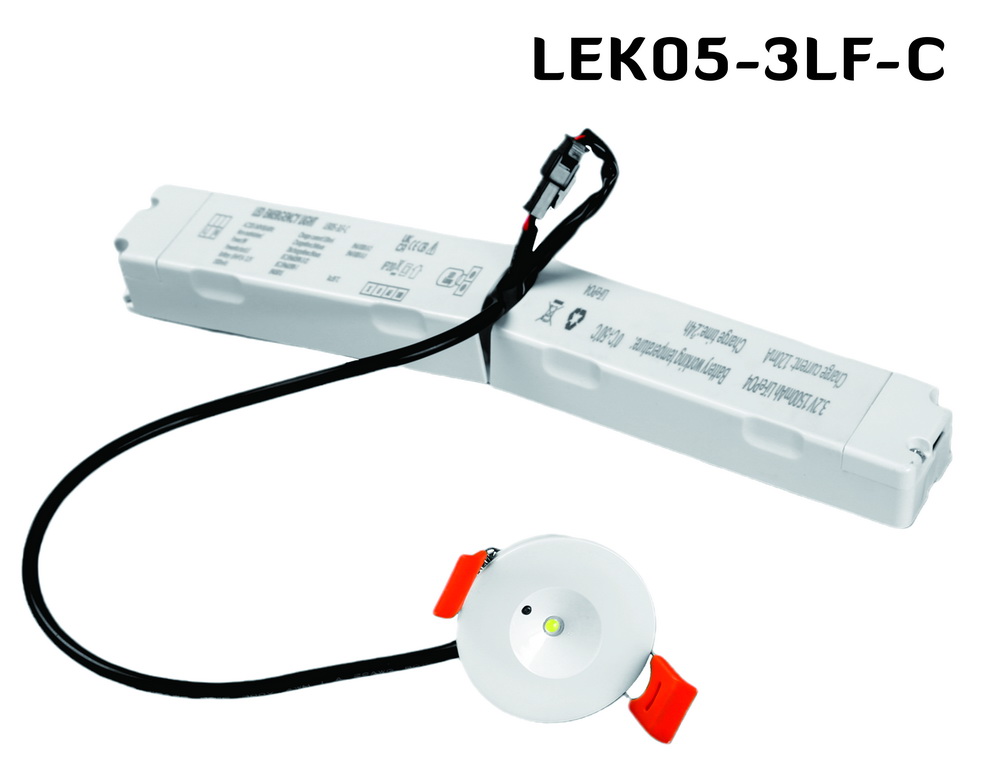

LEK05-3LF
flolite
94054090
| Input Voltage: | |
|---|---|
| Battery: | |
| Emergency duration: | |
| Charging time: | |
| Power Consumption: | |
| Certificate: | |
| Warranty: | |
| Quantity: | |
Relavent Standard
EN 60598-1 | EN 61000-3-2 | IEC 60598-1 | IEC61000-3-2 |
EN 60598-2-22 | EN 61000-3-3 | IEC 60598-2-22 | IEC 61000-3-3 |
EN 61347-1 | EN 62471 | IEC 61347-1 | IEC 62471 |
EN 61347-2-13 | EN 62493 | IEC 61347-2-13 | IEC 62493 |
EN 61347-2-7 | EN 55015 | IEC 61347-2-7 | IEC 55015 |
EN 62778 | EN62031 | IEC 62778 | IEC62031 |
Product Parameter
| Name | GEMINUS | |

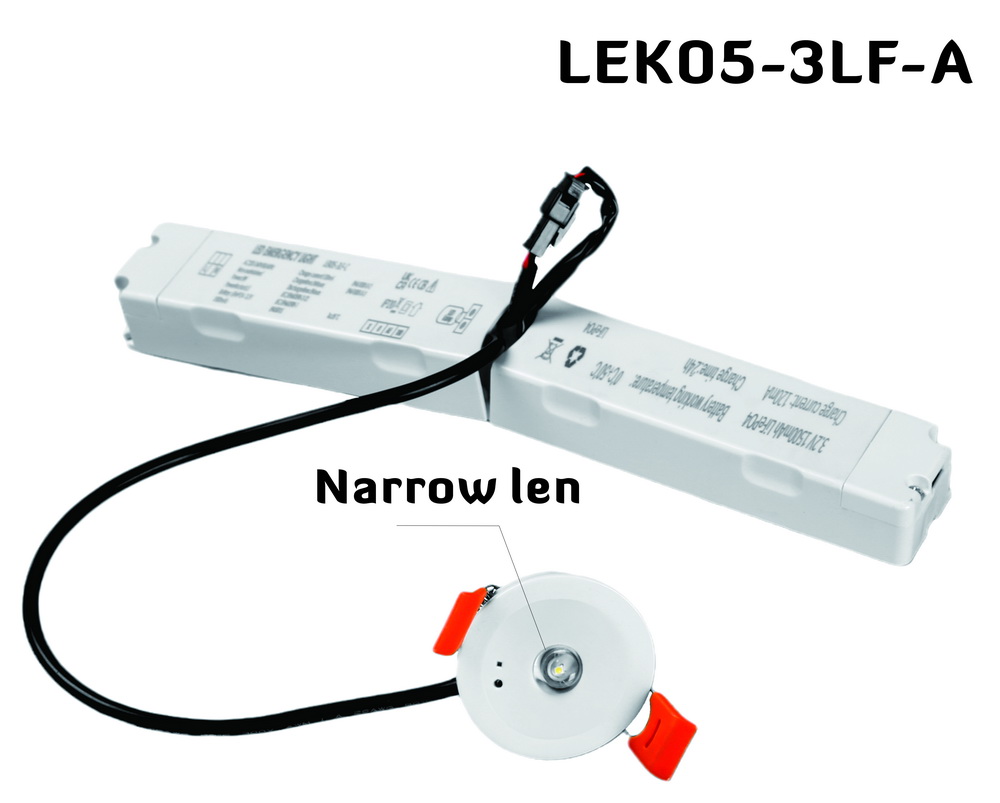

| Model | LEL05-3LF-A | Narrow len |

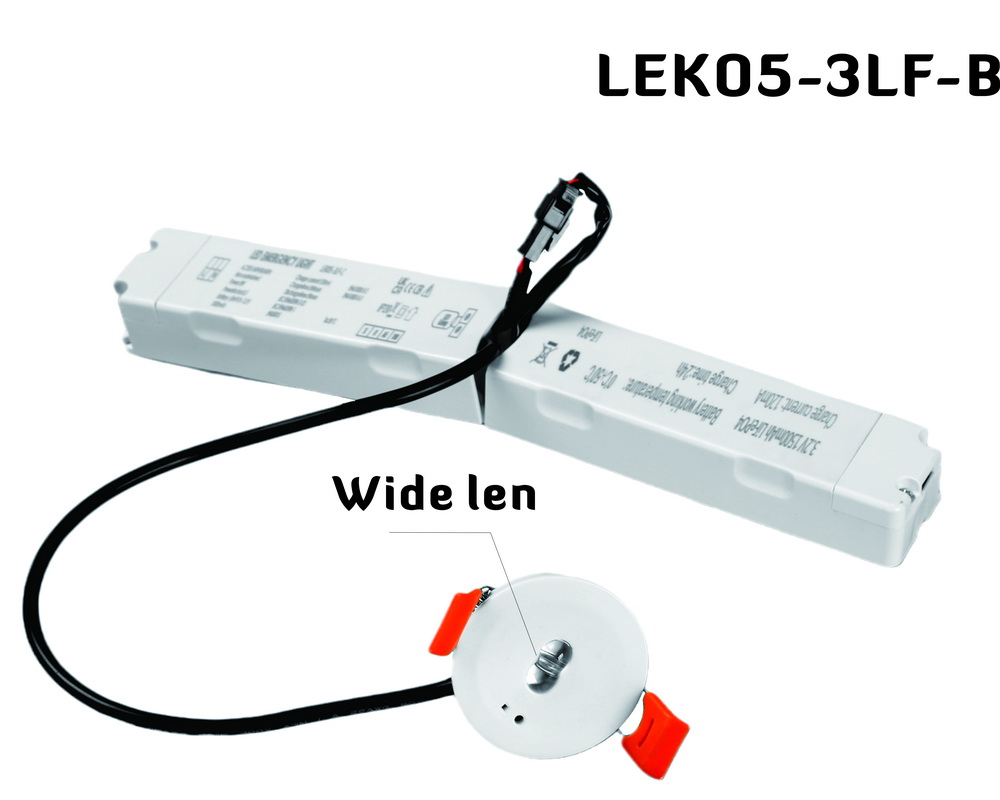

| LEL05-3LF-B | Wide len | |
| LEL05-3LF-C | W/O len | |
| Materils | PC | |
| Input Voltage | 220-240VAC 50/60Hz | |
| CRI | >80 | |
| Power | 3W | |
| Lumen | 150lm | |
| Mode | Non-Maintained | |
| Led Q'ty | High power 1led | |
| Charging time | 24Hrs | |
| Duration | 3Hrs | |

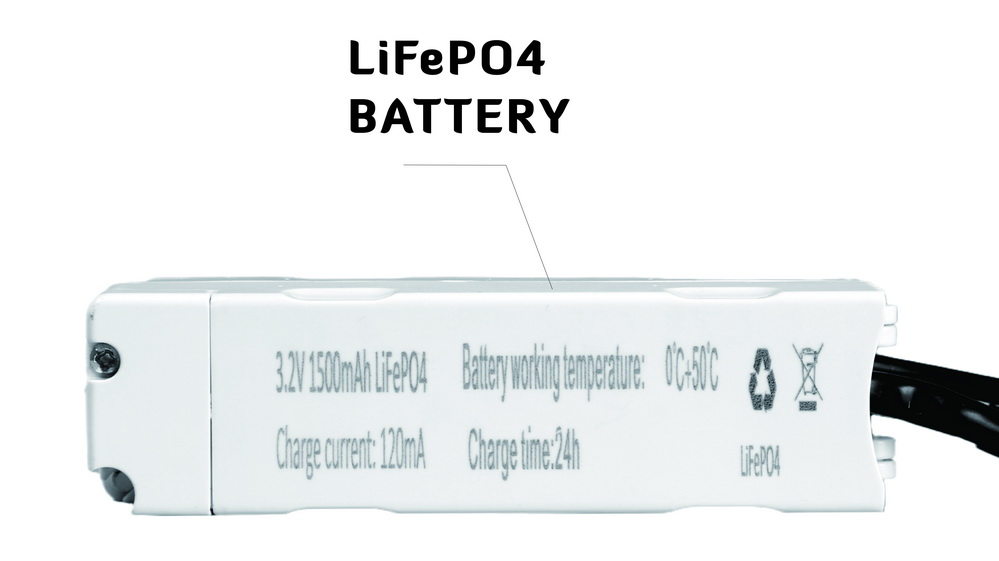

| Battery | LiFePO4 3.2V 1500mAh/2000mAh | |
| Working Temp. | 0℃~+40℃ | |
| Certificate | CB, CE-LVD, CE-EMC, UKCA | |
| Warranty | 3 Years | |

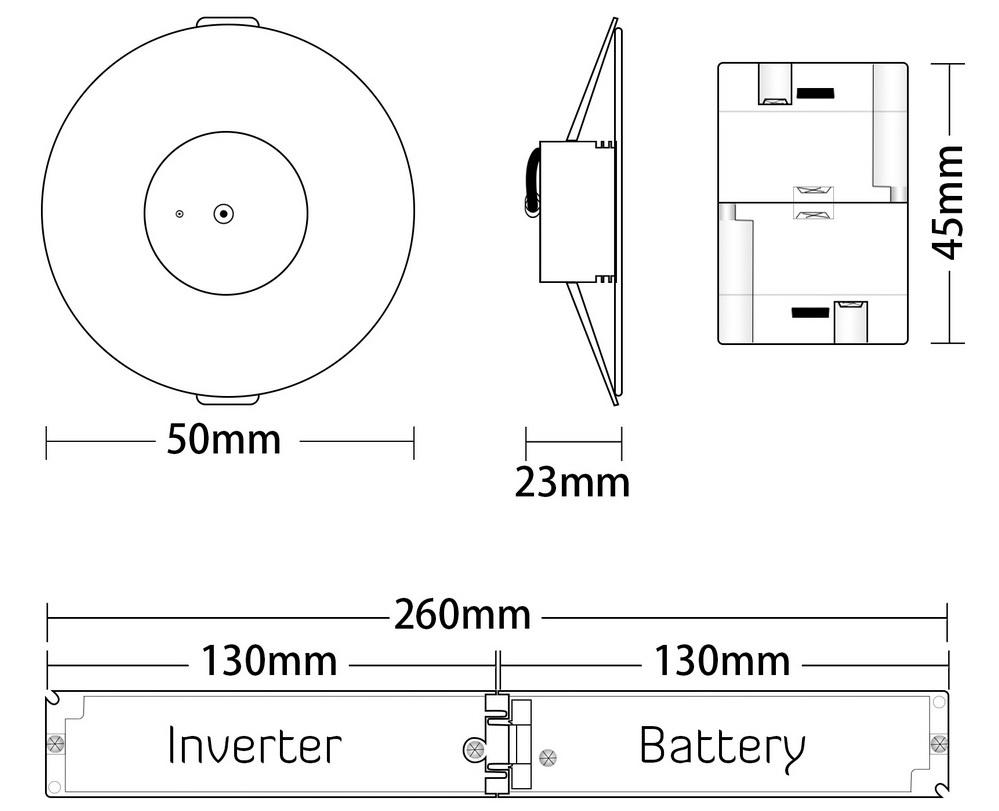

Dimension
Product Features

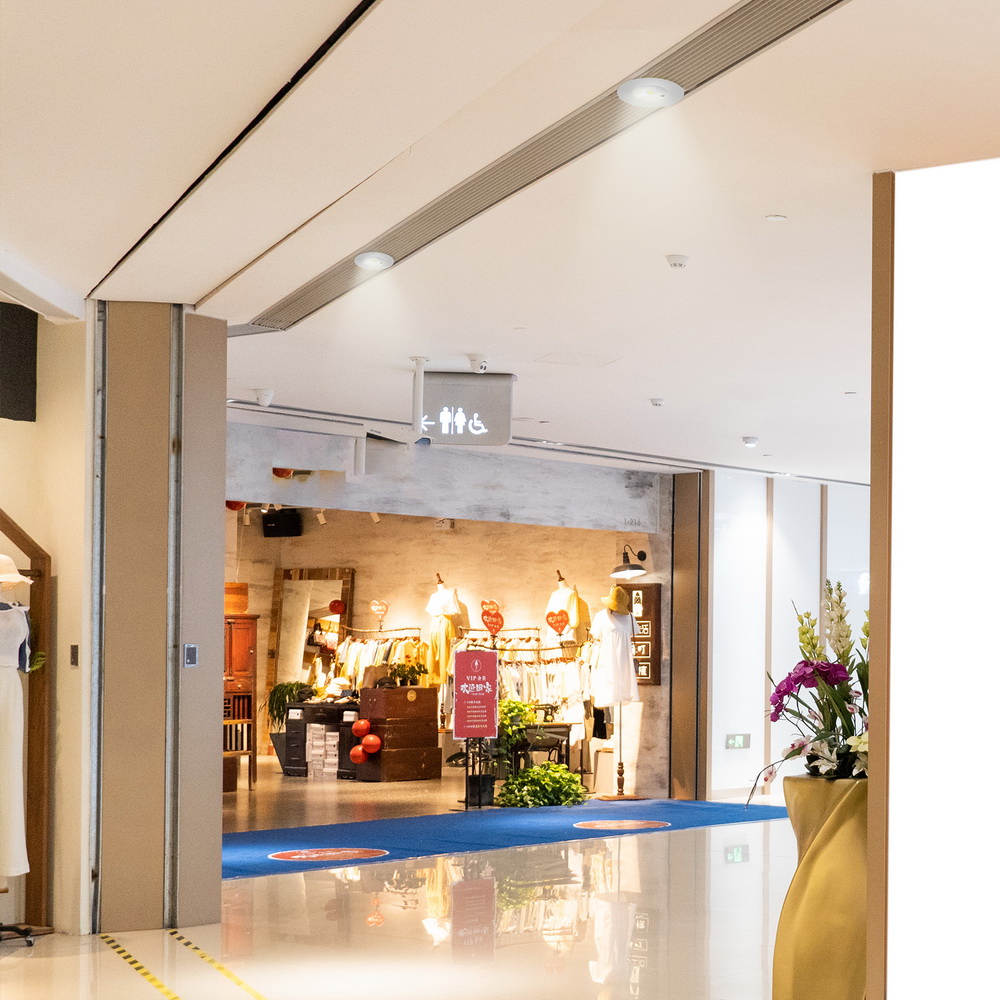

Application
Special Notes
● This product should be installed by a registered electrician in accordance with local standards and electrical regulations;
● Take care to ensure the mains supply is isolated before installation;
● The light source of this luminaire is not replaceable; when the light source reaches its end of life, the whole luminaire shall be replaced;
● The whole luminaire should be replaced when they no longer meet their rated duration of operation after the corresponding recharge period.
