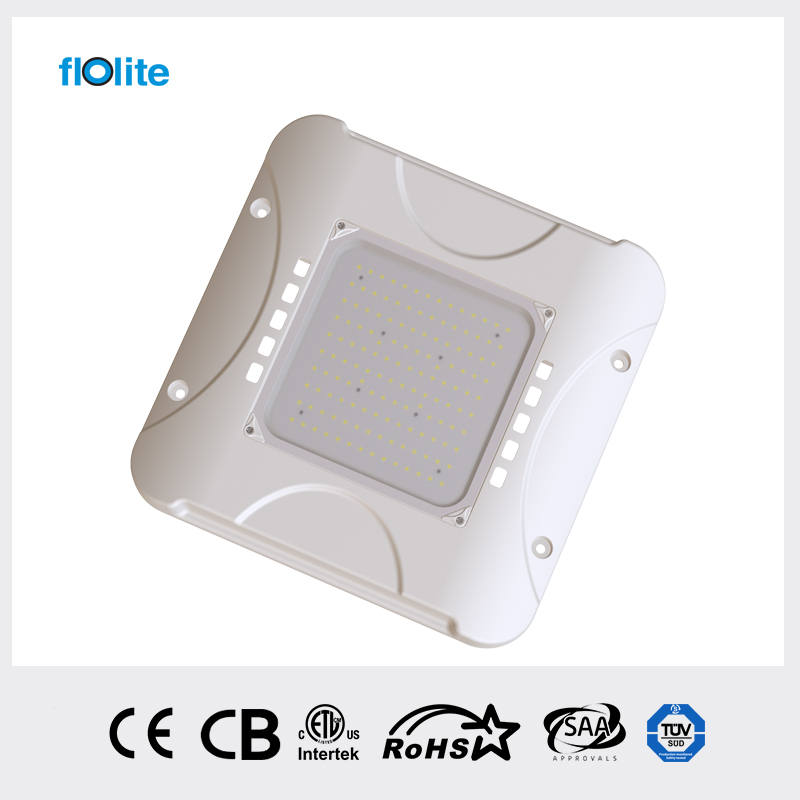

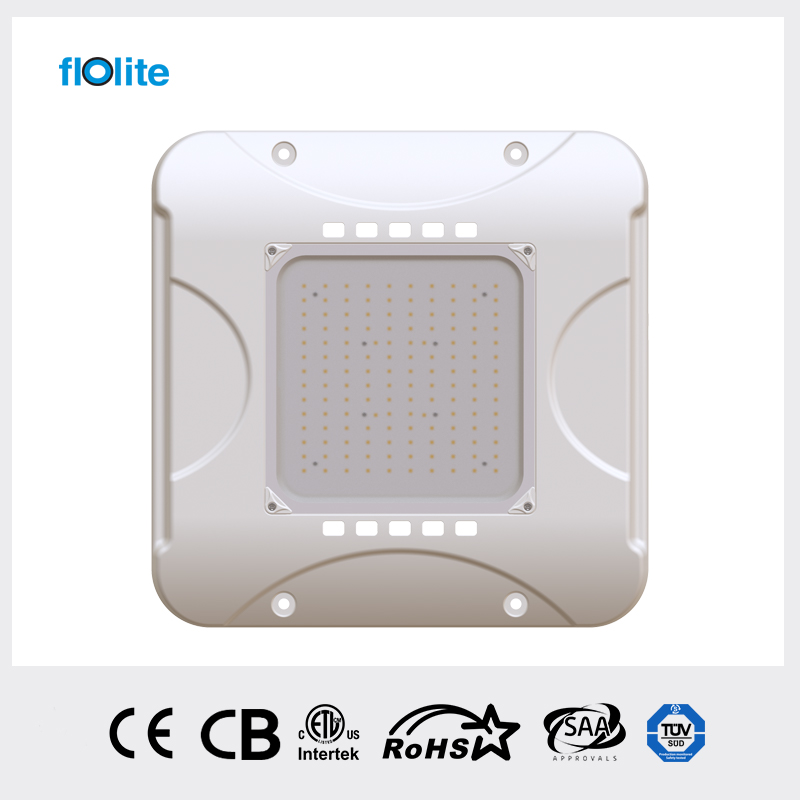

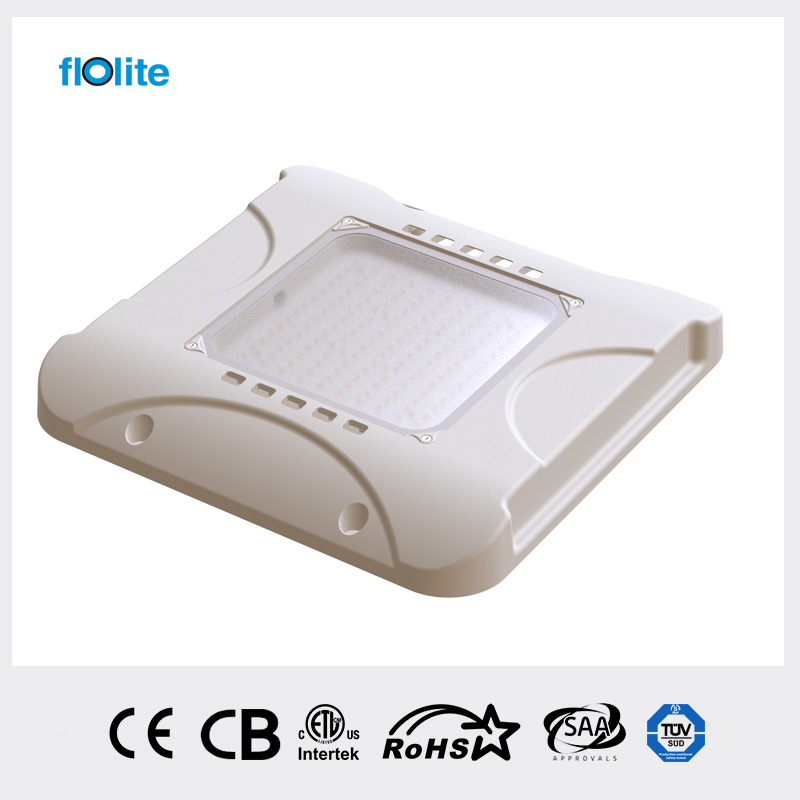

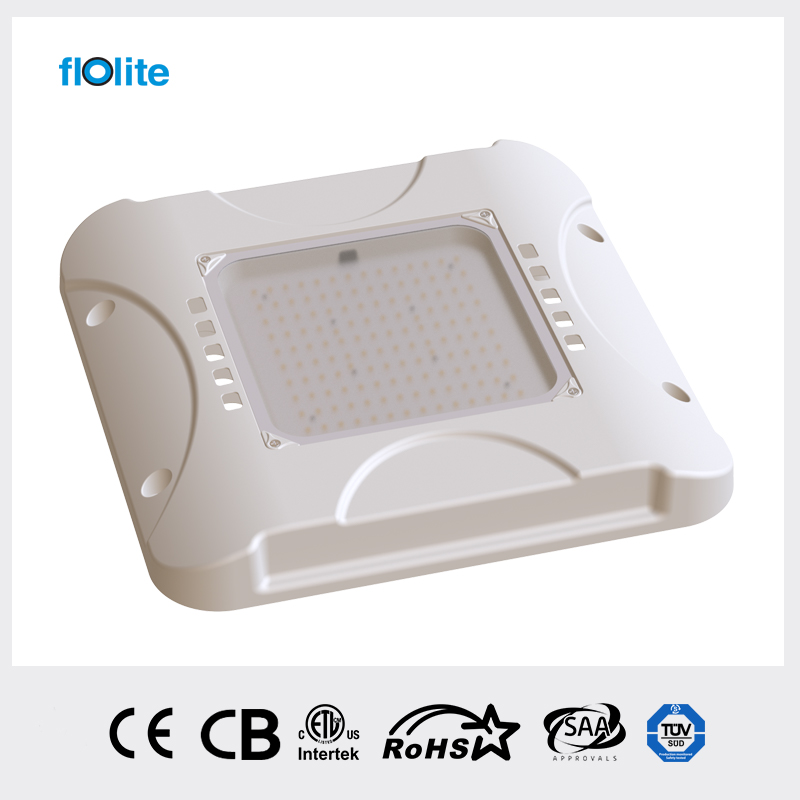

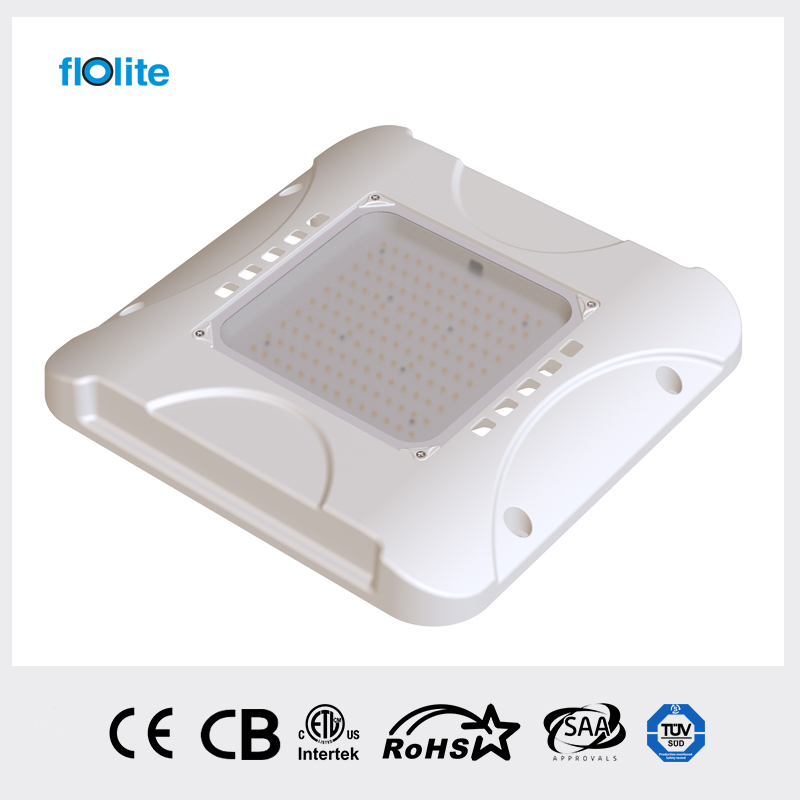

CP05A
Flolite
119005
| Quantity: | |
|---|---|
>>>>>PRODUCT FEATURES

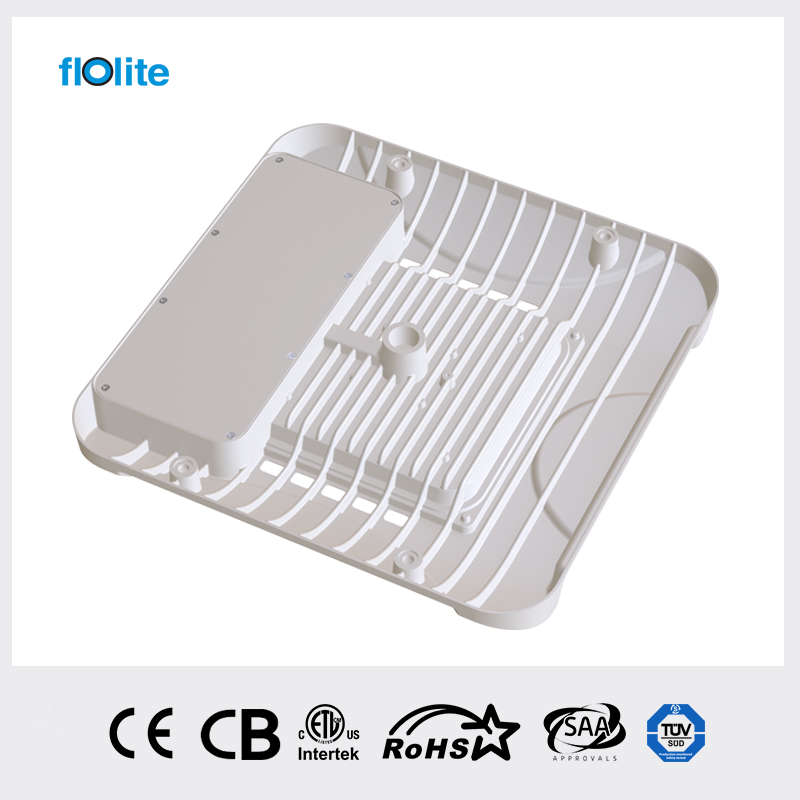

1. Aluminum die-casting heat sinks is good for heat dissipation.
2. It's major to replace the conventional gas station light.
3. Green, energy saving, long and reliable life of 50,000hours.
4. No RF interference, No IR/UV radiation, no mercury pollution.
5. Wide colour availability in degrees Kelvin(K),2700-6700K.
6. Streamline exterior design, beautiful appearance.
8. Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
>>>>>PRODUCT PARAMETERS
| MODEL | INPUT (V) | POWER (W) | EFFICACY (lm/W) | LUMENS (LM) | BEAM ANGLE | TO REPLACE | DIMMING | CRI | P.F. | C.C.T. |
| CP05A-120 | 120-277 | 120 | 150 | 18000 | 135° | 500-750W HID | 0-10V | >80 | >0.92 | 4000K 5000K |
| CP05A-180 | 180 | 150 | 27000 | 750-1000W HID | ||||||
| CP05A-200 | 200 | 150 | 30000 | 750-1000W HID |
>>>>>Electrical Data Input Voltage 120-277 Vac
Power Factor 0.90
Power Frequency 50/60Hz
Power Efficiency >90%
Total Harmonic Distortion <15%
Dimming 0-10V
Surge Protection L-N: 4KV, L/N-PE: 6KV
Efficiency 150 / 170 LM/W
LED 2835
CCT 4000K/5000K
CRI ＞70
Beam Angle 135°
Additional function CCT & Wattage Tunable; 8W EMBB; Pluggable Microwave Motion Sensor
IP Rating IP65
Life Time >50,000Hrs (Ta=30°C@L80)
Warranty 5 Years
IK Degree 08
Housing Die-cast Aluminum
Operating Temperature -31°F to 131°F (-35°C to +55°C)
Finish Black/Bronze/White Customized (Optional)
>>>>>PRODUCT FEATURES
1. Aluminum die-casting heat sinks is good for heat dissipation.
2. It's major to replace the conventional gas station light.
3. Green, energy saving, long and reliable life of 50,000hours.
4. No RF interference, No IR/UV radiation, no mercury pollution.
5. Wide colour availability in degrees Kelvin(K),2700-6700K.
6. Streamline exterior design, beautiful appearance.
8. Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
>>>>>PRODUCT PARAMETERS
| MODEL | INPUT (V) | POWER (W) | EFFICACY (lm/W) | LUMENS (LM) | BEAM ANGLE | TO REPLACE | DIMMING | CRI | P.F. | C.C.T. |
| CP05A-120 | 120-277 | 120 | 150 | 18000 | 135° | 500-750W HID | 0-10V | >80 | >0.92 | 4000K 5000K |
| CP05A-180 | 180 | 150 | 27000 | 750-1000W HID | ||||||
| CP05A-200 | 200 | 150 | 30000 | 750-1000W HID |
>>>>>Electrical Data Input Voltage 120-277 Vac
Power Factor 0.90
Power Frequency 50/60Hz
Power Efficiency >90%
Total Harmonic Distortion <15%
Dimming 0-10V
Surge Protection L-N: 4KV, L/N-PE: 6KV
Efficiency 150 / 170 LM/W
LED 2835
CCT 4000K/5000K
CRI ＞70
Beam Angle 135°
Additional function CCT & Wattage Tunable; 8W EMBB; Pluggable Microwave Motion Sensor
IP Rating IP65
Life Time >50,000Hrs (Ta=30°C@L80)
Warranty 5 Years
IK Degree 08
Housing Die-cast Aluminum
Operating Temperature -31°F to 131°F (-35°C to +55°C)
Finish Black/Bronze/White Customized (Optional)
