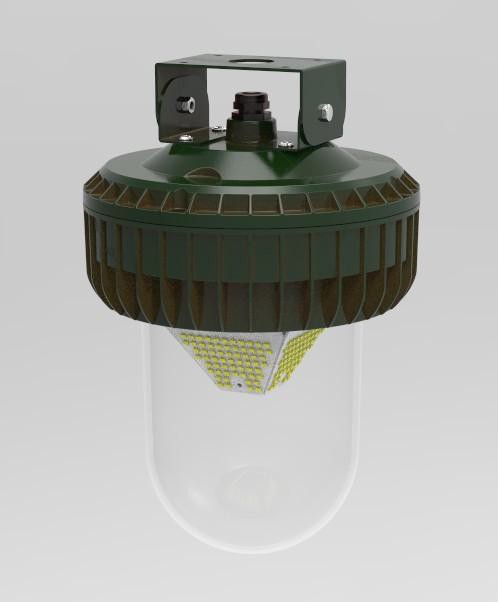

※ Product Photo
※ Product Features
◥ High brightness, Single module using grain, high power LED;
◥ Energy saving, drove by high efficiency constant current driver, with 10KV SPD;
◥ Power efficiency more than 90%;
◥ Superior thermal design, long life, normal use can reach more than 30,000 hours;
◥ Strong weather compliant, not sensitive to temperature, moisture to the wild;
◥ It’s simple-designed and easy to use;
◥ Environmental protection, Eco-friendly, no heavy metals and harmful gas.
※ Product Parameters
Item | Symbol | Description | Unit |
Model | / | YXL-172 | / |
Rated Voltage | VOLT | AC120-277 | V |
Frequency | f | 50~60 | Hz |
Rated Power | P | 40/50/60 | W |
Luminous Flux | Ф | 5000/6000/7200 | Lm |
Light Efficiency | η | 110~130 | Lm/W |
Power Factor | PF | >0.95 (220V) | PF |
Operating Tem. | TOPR | -40~+45 | ℃ |
Storage Temp. | TOPR | -25~+60 | ℃ |
Protection Level | IP | 65 | IP |
Light Source | / | Elec-tech NLW3232/M1 | / |
Correlated Color Temp. | Tc | 3000/4000/5500/6500 | K |
Color Rendering Index | CRI | >75 | Ra |
LED Q’ty | / | 80/100/120 | Pcs |
LED lifespan | LIFE | >50000 | Hrs |
Start-up time | T | <1 | S |
Switch Frequency | n | >5000 | / |
Master Carton (double corrugated) | / | 245*240*375 | 1Pcs |
Product Weight | / | 4.5 | Kgs |

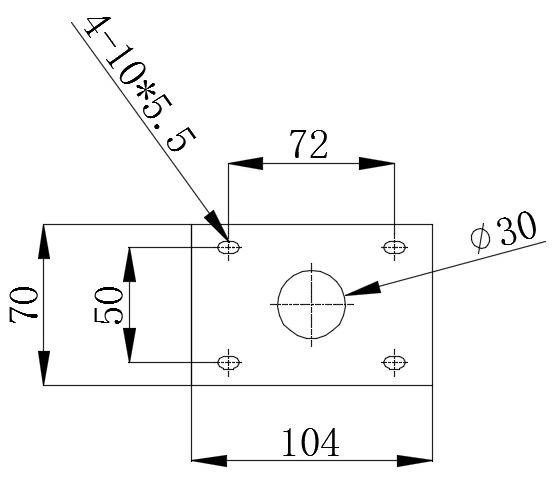

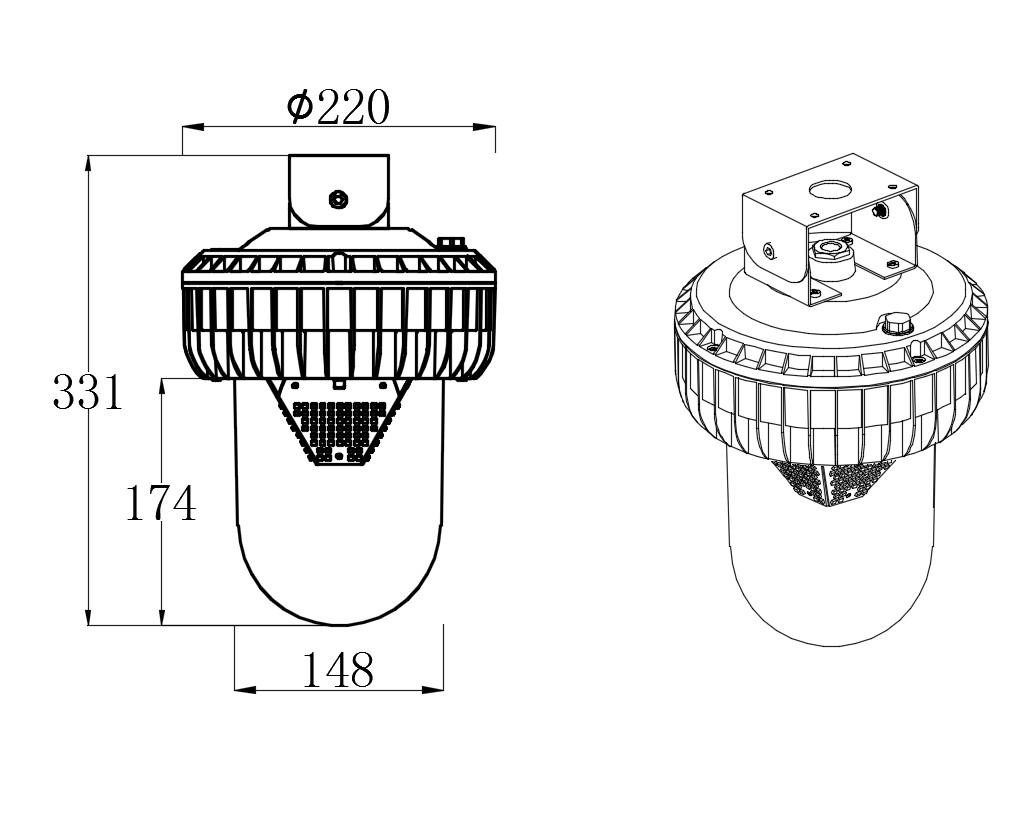

※ Dimensions

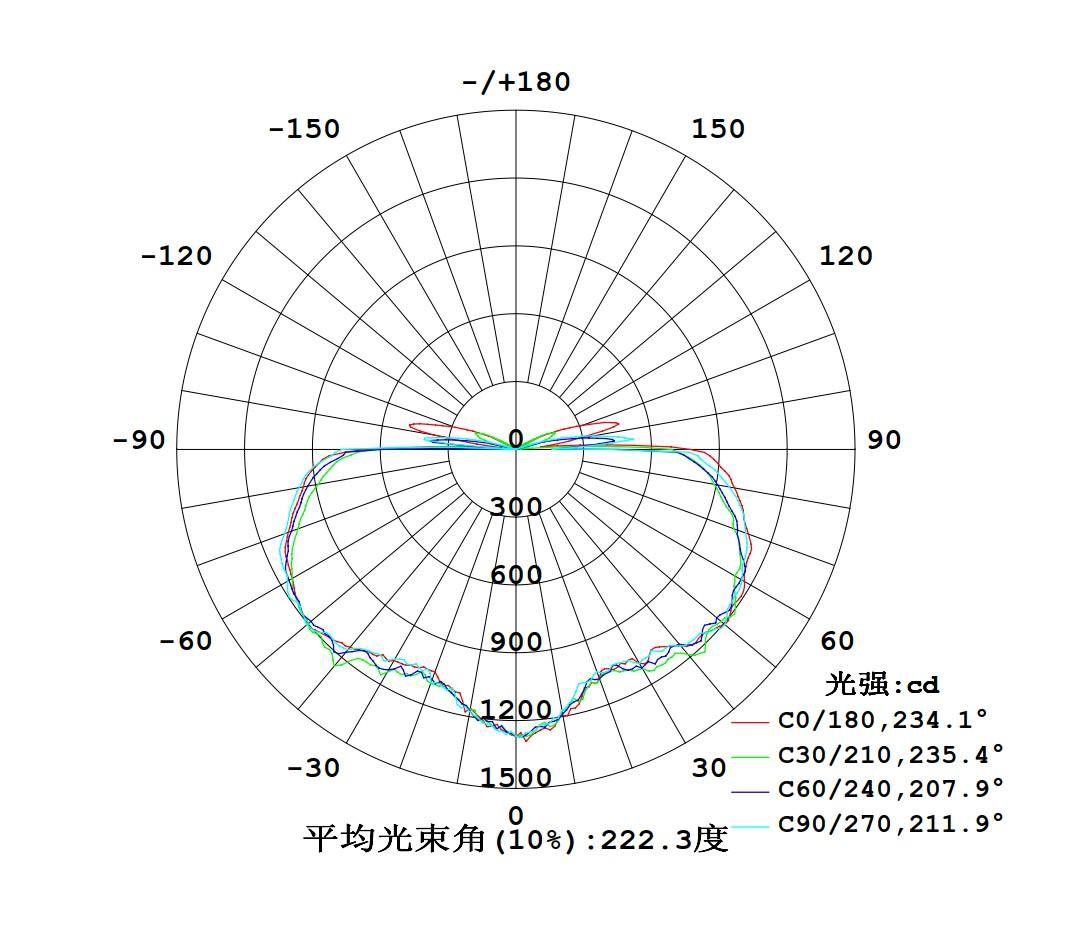

※ Light Distribution Diagram
※ Warning
◆ Avoid heavy pressure is applied to the lamp, otherwise it will affect the stability of the product;
◆ Do not look at the luminaire directly in long time, the lamp light may damage your eyes;
◆ According to the specification, do use the product as the specified input voltage range;
◆ This product must be installed by an eligible electrician;
◆ After disassembly, please do check carefully whether the items are complete or not, if damaged, please contact the supplier immediately, do not try to use again.
※
