LEL04-3L
flolite
94054090
| Input Voltage: | |
|---|---|
| Battery: | |
| Emergency duration: | |
| Charging time: | |
| Power Consumption: | |
| Quantity: | |
Product Features
◆ Polycarbonate housing;
◆ Exit pictogram can be designed as per clients’ request;
◆ Available in both 220VAC or 110VAC version;
◆ Green LED indicator;
◆ Installation way: Wall mounted;
◆ Maintained mode;
◆ IP65
Product Specifications
 | Name | GUARD | ||
| Model | LEL04-3L | |||
| Housing | ABS | |||
| Diffuser | PS | |||
| Input Voltage | 220-240VAC 50/60Hz | |||
| Power | AC | 3W | ||
| Emergency | 3W | |||
| Lumen | AC | 170lm | ||
| Emergency | 170lm | |||
| Mode | Maintained | |||
| Viewing distance | 32m | |||
| Led Q'ty | 14led SMD2835/1w | |||
| Charging time | 24Hrs | |||
| Duration | 3Hrs | |||
| Battery | Li-ion 3.7V 1800mAh | |||
| Working Temp. | 0℃~+40℃ | |||
| Certificate | CB, CE-LVD, CE-EMC, UKCA | |||
| Warranty | 3 Years | |||

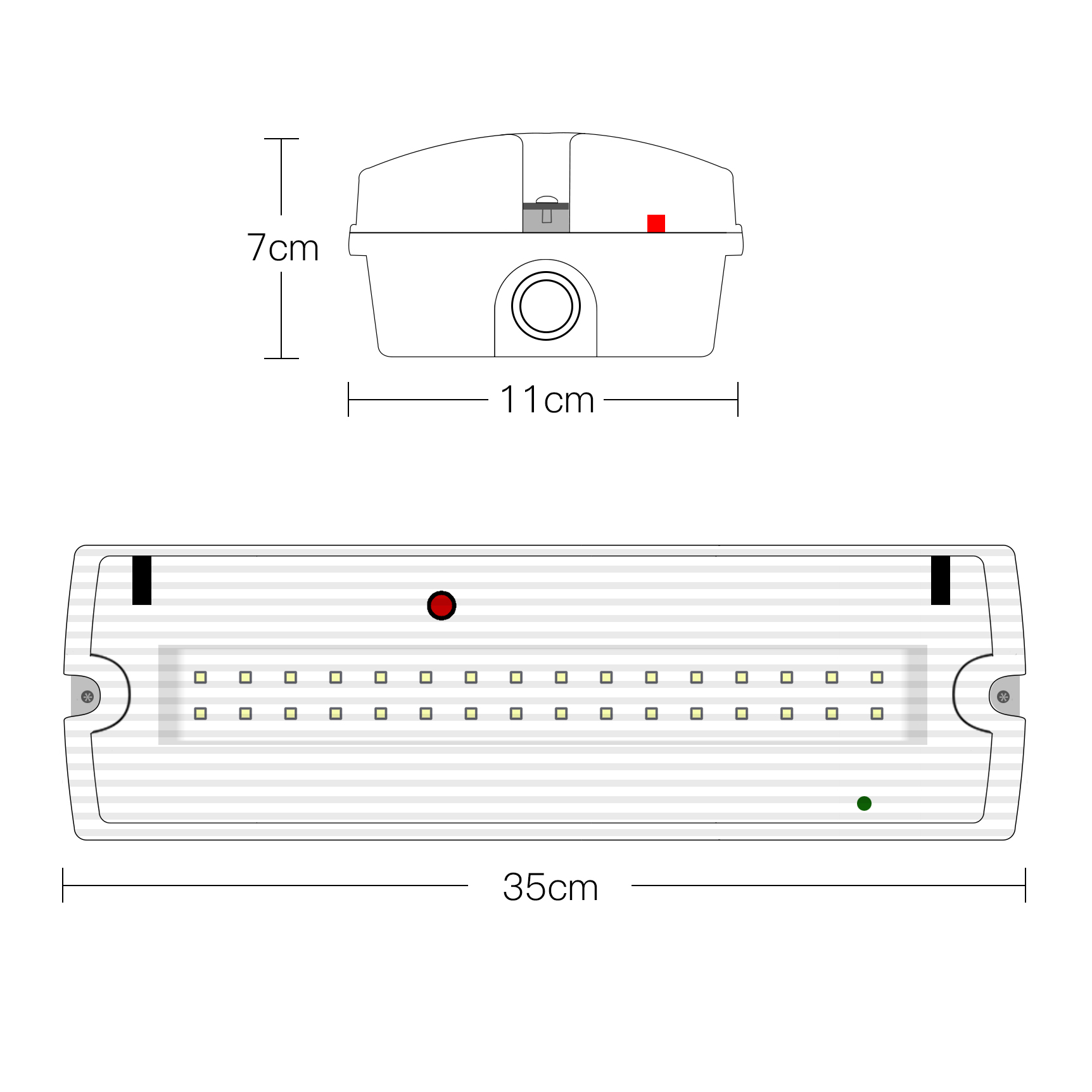

Dimension
Relevant Standard
Manufactured to comply with EN60598-2-22, EN60598-1, CE/CB/UKCA Approved

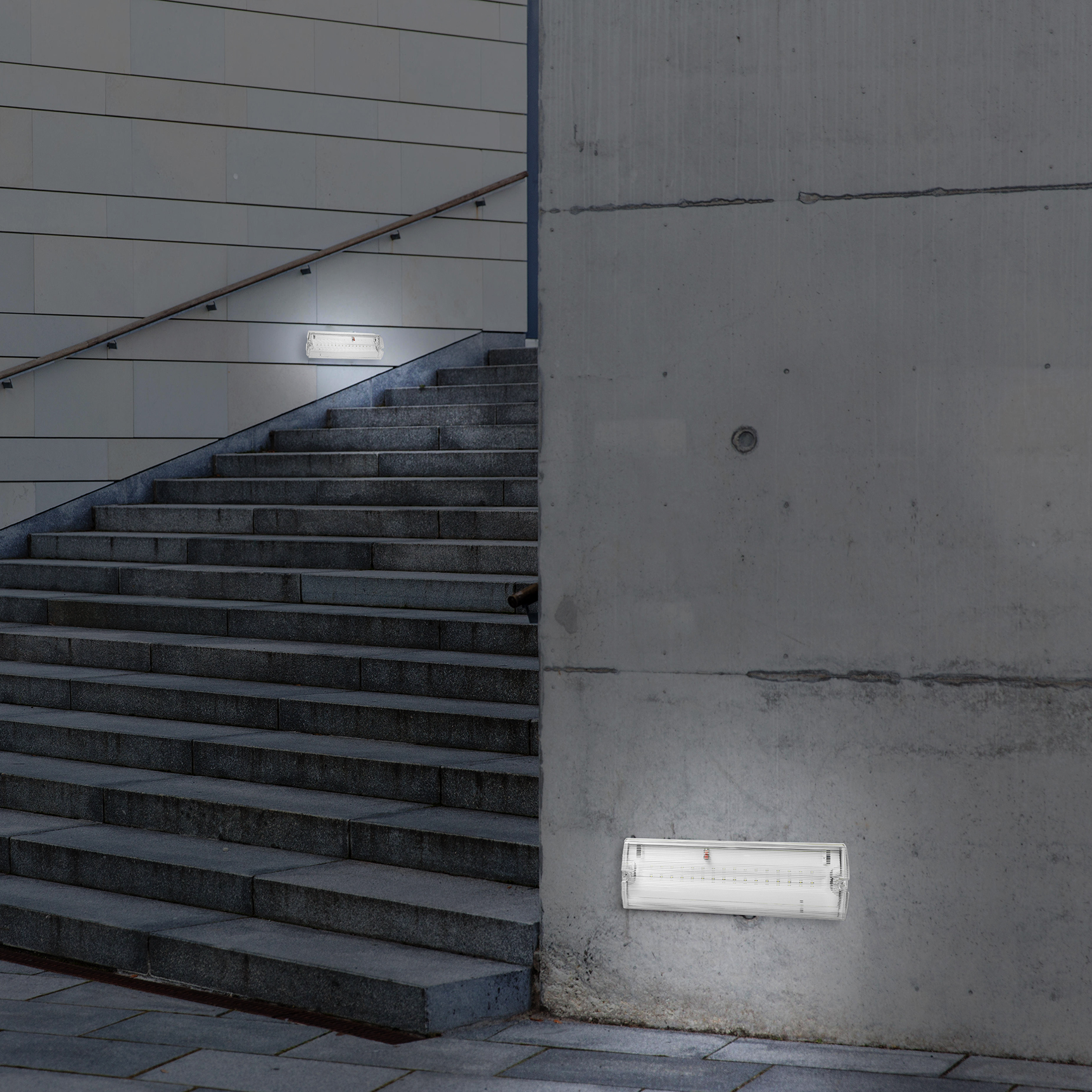

Application
