※ Product Description
◆ This emergency kit works as an isolated circuit, voltage: AC220-240V, the output is constant current
◆ The self-regulated internal charger keeps the battery fully charged and protects it from overcharging.
◆ Li-on battery, Non-Mantained.
※ Product Specification
Item | Model | LEK08-924LF |
Input | Working Voltage | AC220-240V |
Output | Appliacable | 8 Led tuTbes with internal led driver |
Working Power | 9W, 18W, 24W | |
Output Voltage | DC220-240V | |
Supply Current | 0.8A-2A | |
Charging Time | >24H | |
Emergency Duration | 60-120 minutes | |
/ | Storage Temperature | (-20～+ 85°C 10-85% RH) |
Ambient Temperature | ( -10～45°C) standard tempearture 25°C | |
Dimensions | 230mm x 32mm x 30mm |

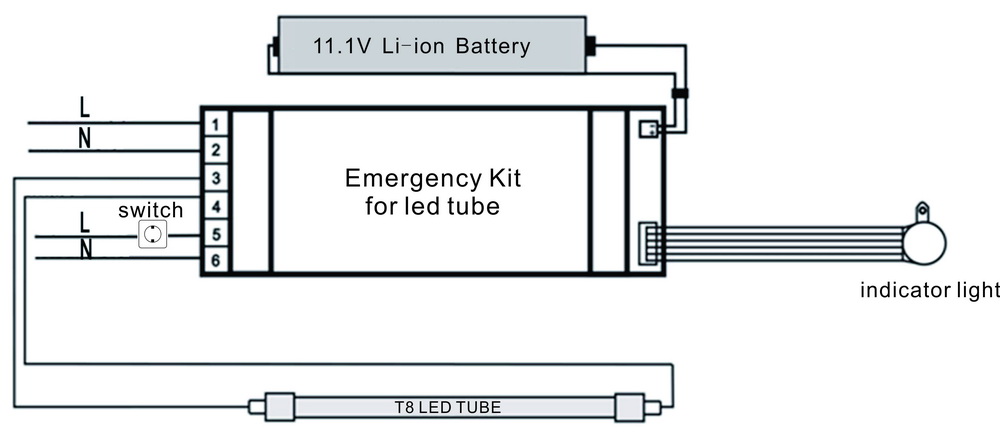

※ Wiring Diagram
※ Important Notes
◥ Exceeding the storage and usage temperature range will shorten the life of the battery.
◥ The battery must be charged and discharged at least once every 3 months.
◥ Use only the original battery connector. Do not attempt to solder directly on the battery.
◥ The battery must be used only in the specified temperature range.
◥ Do not subject the battery or equipment to shocks.
◥ Do not place the battery in contact with fire or attempt to disassemble it. The battery content is highly alkaline and may damage skin or clothing.
◥ When the emergency function test is finished, the battery should be disconnected firstly before removing the kit!
※ Description of indicator lights and test button
Indicator Light | Green light | In the presence of mains electricity supply, constant green light on. |
Red light | The red light is becoming brighter during charging, and keeps constant red light on after Battery fully charged. | |
Yellow light | Battery disconnected, yellow light accompanied by alarm sound signal. | |
Test Button | ≤1S | To test the equipment load: (Press and release the button) to change the mode of operation, (AC and emergency battery). |
